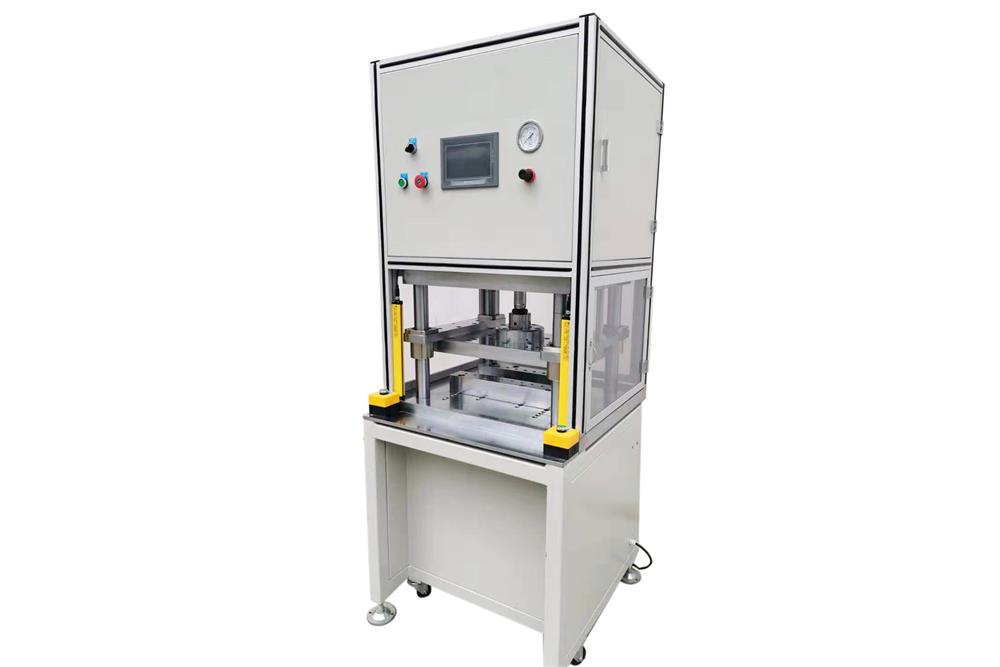

Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C

0.0/5 rating (0 votes)

Description

EQ-MSK-700C is customized and manually operated large cup forming machine with Max/  600 x 600 mm pouch die , which is designed for making large pouch cell in battery research lab.

SPECIFICATIONS:
Features
  • Precision mechanism to ensure cup forming with resolution +/- 0.1 mm
  • Manual operation with an optical  sensor for full protection
  • Product yield may reach 5 - 8 ppcs / minute

Pressing Platen & Die
  • Effective pressing Area:    750  L x 600 W
  • Pressing Die:      Not included, but available based on customer request.
  • Please provide a engineering die drawing before  purchase
Power Requirement
  • 208 - 220VAC, Single phase, 50/60Hz
  • 2KW
  • 110V Version is available upon request
Air Requirement
  • 100 PSI  air compressor is required  ( not included )
Max. Cup Depth to Punch       < 8.0 mm  within single cup  420 x 600mm
Max. Punching Pressure        30 Metric Tons
Production Yield
  • 5 - 8 pcs/min  depended on operator experience
AL Laminated Film
  • Available upon request
Optional & Upgrade
  • Roll to Roll automatic processing device is available upon request at extra cost
  • You may order a larger  diecutter and vacuum seal to seal the large pouch cell
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
  •
Warranty
  • One Year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Dimension & Net Weight
  • 1050mm(L)*1050mm(W)*2000mm(H)
  • 2200 Kg
