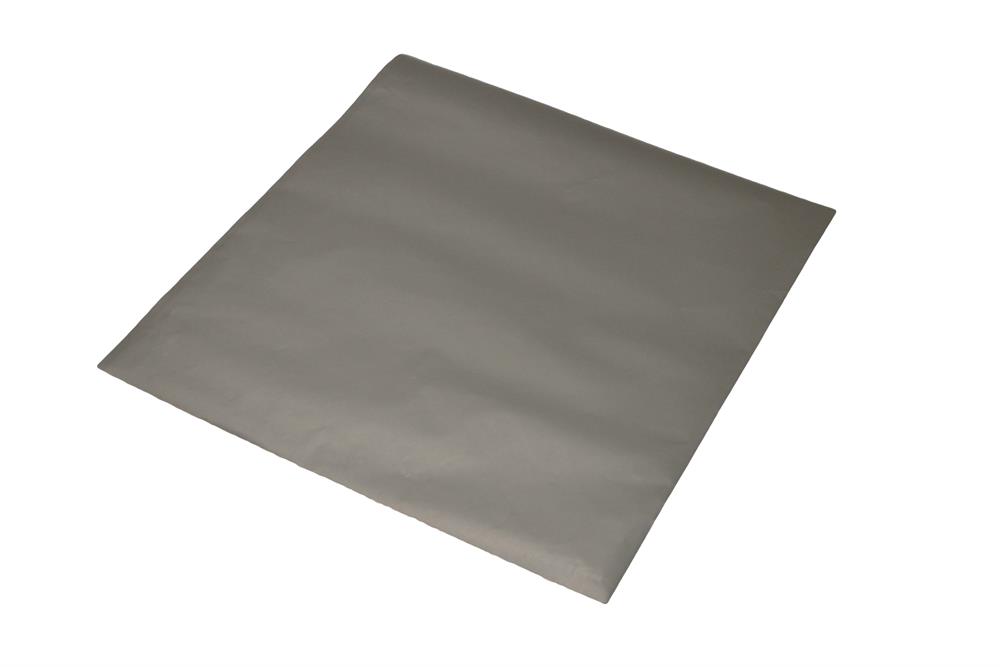

Li-Ion Battery Anode - Single Layer CMS Graphite Coated on Cu Foil (241 L x 200 W x 0.05Thickness, mm) 5 sheets/bag - bc-cf-241-ss-005

0.0/5 rating (0 votes)

Description

This electrode sheet is based on copper foil coated with carbon in a single side and  is used as an anode electrode for Li-Ion battery
5 sheets/bag

Specifications

  • Current collector (substrate): Copper foil, 9 micron
  • Anode material: Composite Graphite
  • Binder: SBR+CMC
  • Single side active material density: 80g/㎡
  • Active Material Proportion in Powder: 94.5%
  • Length: 241mm
  • Width: 200mm
  • Thickness: 0.05mm  (single side coated )
  • Specific Capacity: 330mAh/g
  • Single side active material density: 80g/m2
  • Single side coated
  • Qty: 5 Sheets/bag
  • Warning:  Please dry in vacuum oven before using and store it inside glovebox after open package

Click here for SDS for Copper foil
Click here for SDS for Composite Graphite
Click here for SDS for SBR
Click here for SDS for CMC

Click picture below to view the video how to coat the electrode and then make a coin cell:
