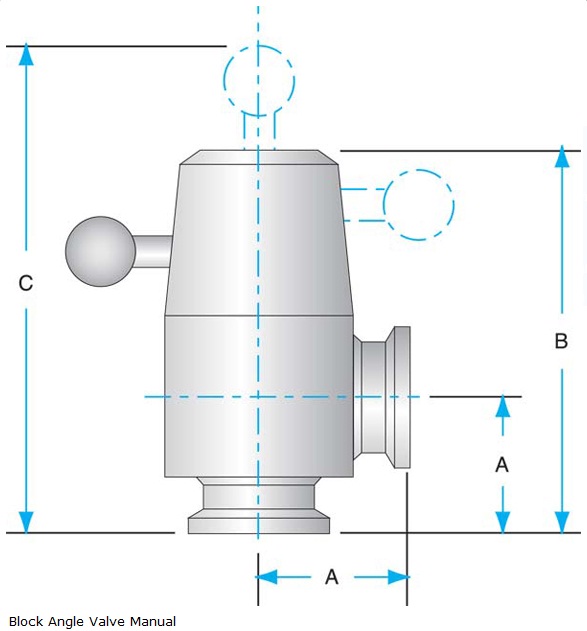

Manual Al Angled Block Valves (KF flanged)

Recommended for rough and high vacuum environments.

• Can be used down to pressures of less than 1 x 10^-9 torr
• Bakeable to 100° C
• Leak rate through the main valve seal is tested at less than <1 x 10^-9 std cc/sec. with helium during manufacture
• Available with manual, pneumatic, and electromagnetic actuators

Manually actuated valves

• Feature a quick-acting lever attached to a self-lubricating cam-piston for precise valve stem actuation
• PTFE bearings ensure smooth action
• Sealed grease-free bellows minimizes valve maintenance and enables operational reliability to 100,000 cycles
