Manual Al Diaphragm Valves (Buna-N)

Offer high tolerance for dirty systems at a relatively low cost.

• Maximum leak rate of <1 x 10^-6 mbar ls^-1
• Works best in the pressure range 10,000 - 1 x 10^-5 mbar
• Withstands bakeouts to 60° C
• Buna-N and Viton^® diaphragm versions are available

Techniques, such as Finite Element Analysis, are used to optimize the design of these valves, while testing each valve with a helium mass spectrometer ensures it meets stringent specification standards.

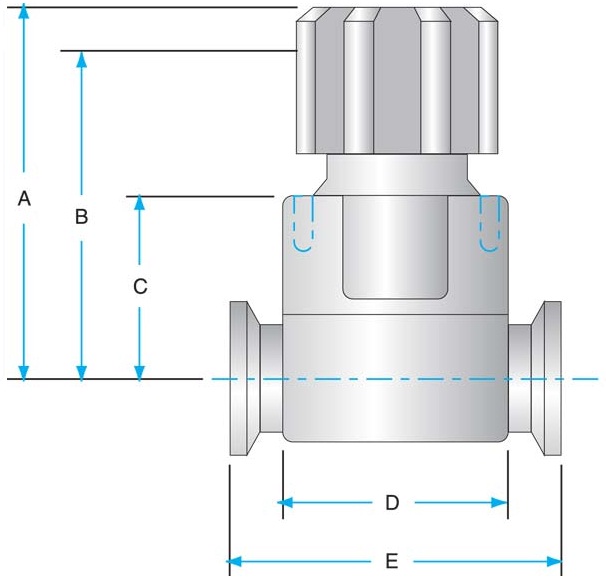

NOTE: The KF40 versions are available for pipeline mounting only and the smaller sizes can be panel mounted using the tapped holes provided.
