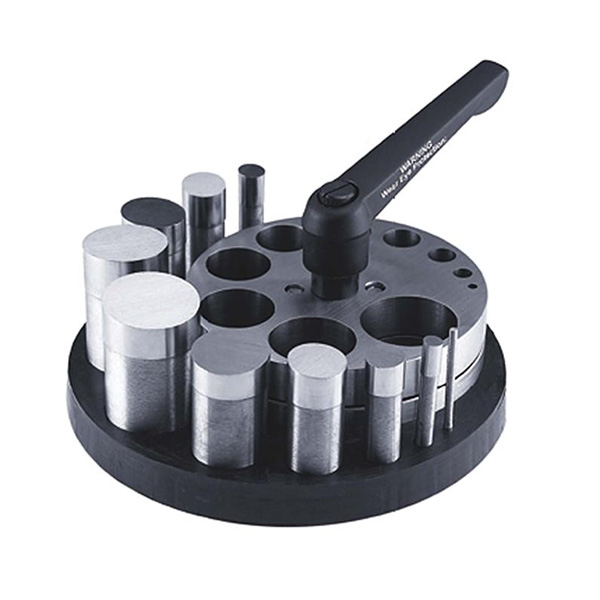

Manual Disc & Ring Cutter Set for Metallic up to 1.29mm Thick (10 pcs die) - MSK-T-09-LD

MSK-T-09 this high-quality disc cutter set features tools made of hardened and tempered, shock-resistant tool steel with precision-ground surfaces. It is designed for cutting round discs and rings from metal sheets up to 1.29 mm in thickness (such as Cu and Al). A spring-loaded die plate allows you to easily open and close according to the thickness being punched.

This set includes a cutter tool, 10 dies, and a strong rubber base (5-7/8" Dia) that conveniently holds the cutter, dies, and an Allen wrench.

SPECIFICATIONS:

Cutting Dies (Imperial and Metric sizes are available, please choose in the options bar.)	10 cutting dies are included for immediate use.  Please choose Metric or Inch from the optional bar Metric Size: 3mm, 6mm, 10mm, 13mm, 16mm, 20mm, 22mm, 25mm, 28mm and 32mm Imperial Size: 1/8", 1/4'', 3/8'', 1/2'', 5/8'', 3/4'', 7/8'', 1'', 1- 1/8''  and 1-1/4" (1/8" increments)
Center-Positioning Dies	A set of positioning dies are included for you to cut out the metal rings.
Cutting Thickness	This disc cutter is suitable for punching soft gold, silver, copper, and brass in thicknesses up to 1.29mm. Note：  It is not suitable for cutting thin electrode sheets or plastic film, such as the separator of battery
Warranty	One year limited manufacturer warranty with lifetime support (*Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)
Application Notes	It is suggested to use a urethane square (1/16" thick, 95 durometer, not included) under the cutters as a support as you cut; the urethane absorbs the energy of the hammer blow, protecting the cutters and the work surface and ensuring a clean, sharp cut.
Operation Manual & Video
Net Weight	10 kg (20 lbs)
