MAPS HTE Series

Power supply suited for high-temperature evaporation of metals and inorganic materials.

The M.A.P.S. HTE is configured for the control of medium-voltage, low-current sources. These sources can range from high-temperature Knudsen Cell evaporation sources to small "button-style" sample heaters.

These units can be operated in one of three modes:

• Manually, in "auto tuning" mode
• Incorporating closed-loop, PID, temperature control
• "Rate control" mode when used with an external thin film controller

Features:

• Microprocessor-based programmable temperature controller
• Ability to store multiple programs for multiple organic materials and vacuum preparation routines
• Controller preprogrammed for Type-K thermocouple interface
• Type-K thermocouple input connectors standard (others available)
• Digital temperature and set point
• Phase-angle fired SCR output
• Integrated current transducer
• RS-232 interface for remote PID control
• BNC connection for rate control

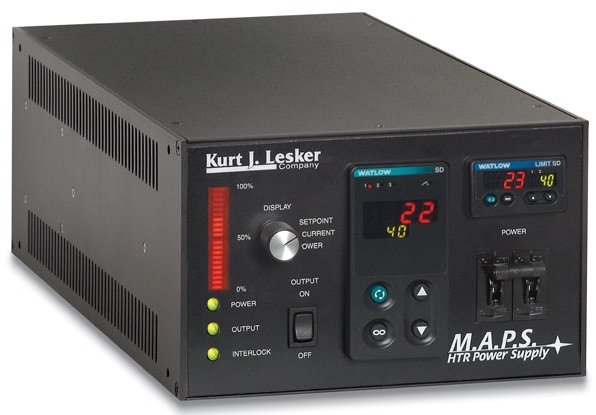

Lesker MAPS HTE Series
