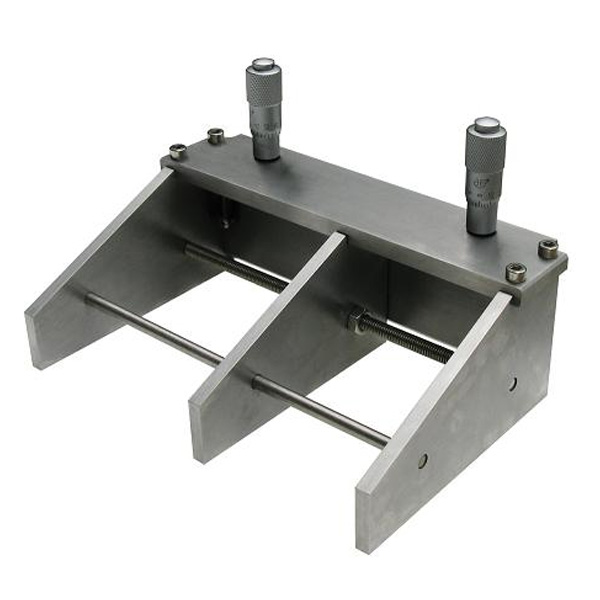

Micrometer Film Applicator with Adjustable Width 0 - 150 mm (Film Casting Doctor Blade) - EQ-Se-KTQ-150A

This unique wet film applicator features adjustment. for both of thickness and width. The operator sets the blade clearance by adjusting the micrometers and sets up a film width to be coated by adjusting blade width. This is an excellent tool to make the quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at the lower cost. Stainless steel knife blade with the precision ground edge.

SPECIFICATIONS:

Features	0 - 150 mm adjustable in width. Make wet film thickness between 0 - 4500 microns. The micrometer head's controllable accuracy is 10 microns.
Structure & Dimension
Replacement	Purchase spares part springs or micrometer heads for the replacement here.
Optional	Upgrade to the digital micrometers for better accuracy, with a customized doctor blade NOT naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order a customized doctor blade, the separate order would not fit. Digital Micrometer  Specifications Digital Micrometer Head 1" Travel Reads to 0.001 mm (50 millionths of an inch)  0.003 mm accuracy Instant inch/millimeter conversion
Operation instruction
Demo Video	Please click the video below to see how film applicator works on MTI's film coater MSK-AFA-II-VC
