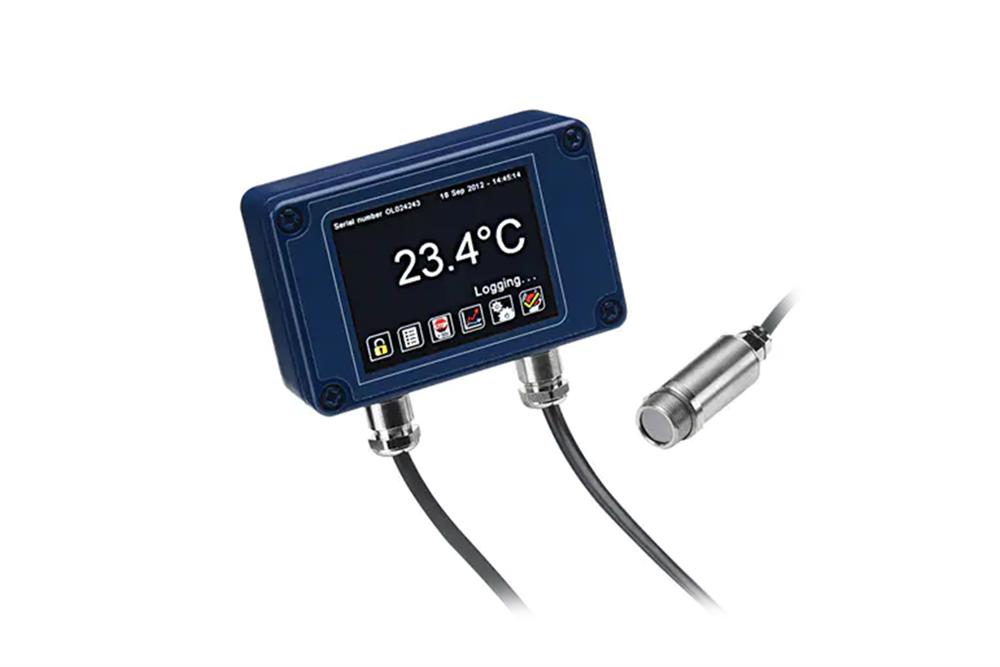

Miniature Fixed Infrared Temperature Sensor - EQ-IRTS-LD

0.0/5 rating (0 votes)

Description

The EQ-IRTS-LD is an infrared sensor designed to work for many applications and provide fast non-contact temperature readings. The miniature sensing head is ideal for space-limiting areas, is manufactured using 316 SS, and has an IP65 rating. This robust, easy-to-use sensor is used in many industries including pharmaceutical, food, manufacturing, plastics, pater, and much more. Features:

  • The temperature sensing head is completely sealed and IP 65 Rated.
  • Resistance to error from moving, ideal for robot arms and similar equipment.
  • OS-MINIUSB comes with FREE software (Software Tab)
  • Open modbus protocol over serial (OS-MINIBUS)
  • Optional touch screen for temperature indication and configuration
  • Adjustable emissivity to accommodate various applications

SPECIFICATIONS:

Input Voltage
  • 24 Vdc

Process Temperature Range
  • 450 - 2000 °C (842 - 3632°F)

Accuracy at Ambient
  • +/- 1% rdg or 2°C(3.5°F)

Operating Temperature Range
  • 0 - 70°C (32 - 158°F)

Field of View
  • Close-Focus

Output
  • 4 to 20mA, 2 alarm relays output
Spectral Response
  • 2 to 2.6 microns
Response Time
  • 240 ms
Housing Material
  • 316 Stainless Steel
Maximum Ambient Humidity
  • Maximum 95% non-condensing
Repeatability
  • +/- 0.5°C or 0.5%, whichever is greater
Sensor Length
  • 18mm
Thread Size
  • M16 × 1 mm
