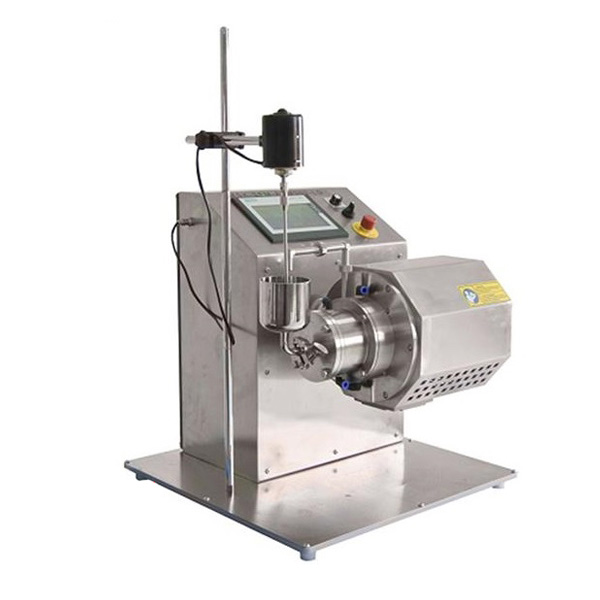

Nano Agitator Bead Mill with Self Circulation & Optional 0.3 / 1.0 L Capacity - MSK-SFM-ABM-LD

0.0/5 rating (0 votes)

Description

MSK-SFM-ABM-LD is a compact agitator bead mill for wet grinding & milling of solid powders into nanometer range (2 μm - 200 nm) particles. It offers highly efficient milling with the narrow size distribution of milled particles.
MSK-SFM-ABM1000-LD offers a more efficient bead milling solution with a large 1000 mL milling chamber and improved processing technology.

SPECIFICATIONS

Part Number MSK-SFM-ABM300-LD MSK-SFM-ABM1000-LD
      Features
  • Highly efficient milling system that combines bead milling and centrifugal separation
  • Wear and corrosion resistant design for metal-free processing with milling chamber and rotor made of ceramic
  • Self-circulation with a closed system for circulation and multi-pass milling operation
  • High purity zirconia milling balls are included for immediate use
  •
  • Our large-capacity milling system offers outstanding efficiency compared with earlier models.
  • Highly efficient milling system that combines bead milling and centrifugal separation
  • Wear and corrosion resistant design for metal-free processing with milling chamber and rotor made of ceramic
  • Self-circulation with a closed system for circulation and multi-pass milling operation
  • High purity zirconia milling balls are included for immediate use.
  •
Input Power
  • 208 - 240 VAC, 50 Hz, single phase.
  • 110VAC version is available via 1500W transformer
  • 1.1 kW power
  • 380 VAC, 50 Hz
  • 4 kW power
  • 208-240V, 3 phase is available via a transformer
Milling Operations
  • Motor speed: 600 - 2880 rpm programmable
  • Milling chamber capacity: 300 mL
  • Milling chamber material: Zirconia
  • Milling rotor design: Peg grinding system with a small length/diameter ratio
  • Milling rotor material: Zirconia
  • Milling media size: 0.3 - 1.4 mm
  • 0.7 kg 0.3-0.4 mm high purity milling media is included, which fills up to 70% of the chamber
  •
  • Motor speed: 2850 rpm
  • Milling chamber capacity: 1000 mL
  • Milling chamber material: Silicon carbide
  • Milling rotor design: Peg grinding system with small length/diameter ratio
  • Milling rotor material: Zirconia
  • Milling media size: 0.3 - 1.4 mm
Milling Media
  • 0.7 kg 0.3 mm diameter YSZ mill ball is included for immediate use,
  • Other sizes of YSZ mill ball is available upon request.
  • Usually, the Milling ball vs Material is 7:3, and a small output particle requires a smaller milling ball.
  • Warning:  Max. the mill ball size is 1.4 mm  (A larger ball may damage the mill chamber).  It is the customer's responsibility to find the best parameter for your own sample by experiment.
  • Other sizes of YSZ mill ball is available upon request.
  • Usually, the Milling ball vs Material is 7:3, and a small output particle requires a smaller milling ball.
  • Warning:  Max. the mill ball size is 1.4 mm  (A larger ball may damage the mill chamber).  It is the customer's responsibility to find the best parameter for your own sample by experiment.
Self Circulation
  • Self-circulation with a closed system for circulation and multi-pass milling operation
  • Separation filter net material: Tungsten Steel
  • Separation filter net pore size: <0.3 mm
  • Self-circulation with a closed system for circulation and multi-pass milling operation
  • Separation filter net material: Tungsten Steel
  • Separation filter net pore size: 0.12 mm
Cooling
Size
  • 600 mm L x 600 mm W x 850 mm H
  • 710 mm L x 920 mm W x 900 mm H
Net Weight
  • 50 kg
  • 190 kg
Warranty
  • One year limited warranty with lifetime support
Operation Instructions

Application Notes
  • Always use the equipment on a level & stable surface for best performance and maximum safety
  • If the liquid is spilled on the unit, first disconnect the unit from external power and then clean the unit with a cloth
  • The equipment is NOT intended to use for dry milling of powders!
  • To avoid powder clumps and achieve best milling results, 1) sieve the powder prior to milling, 2) mix milling media of different sizes and do the milling
