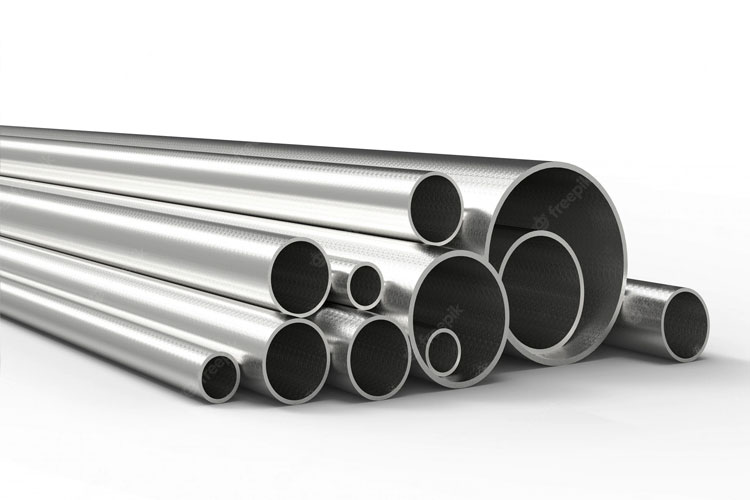

Ni-Based Super Alloy Seamless Tube: 80 OD x 70 ID x 1200 L (mm), 1100C Max. Working Temperature

0.0/5 rating (0 votes)


It is a Ni based super-alloy ( Inconel 600 equivalent ) for aircraft industry with excellent oxidation resistance properties and maximum working temperature 1100°C.  We use the super-alloy as processing tube for MTI OTF1200 series split tube furnace to achieve ultra-high vacuum and higher pressure. Note: The listed price is for one tube only.
Tube Specification:
  • Outside Diameter:            80 mm
  • Inside Diameter:               70 mm
  • Tube Length:                   1200 mm
  • Density:                          7.8 g/cm3
  • Weight:                          ~ 6750 g
  • Fabriation:                       seamless via extrusion
  • Max. working temperature without load:   1100°C
  • Max Working Pressure with suitable high pressure flange
      • 50 atm  @ 800°C
      • 30 atm  @  900°C
      • 15 atm  @1000°C
      • 10 atm  @1100°C
  • Max. vacuum pressure "   1E0-6 torr with CF flange
  • In order get longer tube service life, Please use quartz or alumia crucible to carry sample, instead loading sample directly inside tube, please click picture below to choose one crucible boat:
Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )
