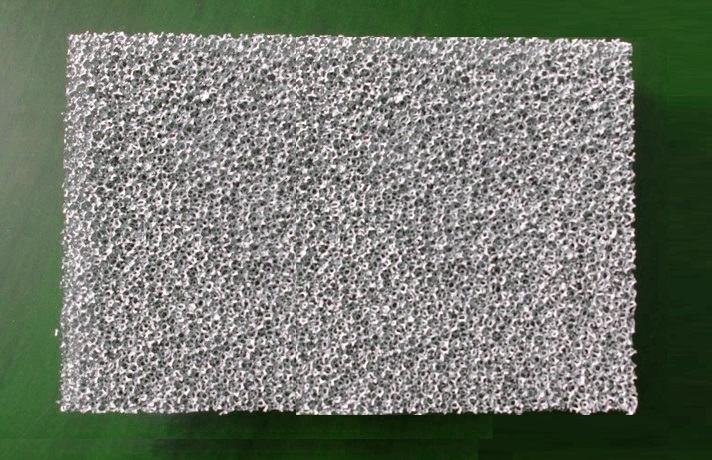

Nickel Foam (200mm length x 300mm width x 1.6mm thickness) - EQ-bcnf-16m-2

0.0/5 rating (0 votes)



  • Material: Nickel Foam, Purity> 99.99% (excellent anti-corrosive)
  • Sold in roll only
    Surface Density: 346g/m^2
    • Length:  200 mm
    • Width: 300mm
    • Thickness: 1.6 mm
    • Net weight: 21g
  • Porosity: ≥95%   (80-110 Pores per Inch. average hole diameters about  0.25mm)
  • Extensibility: Lengthwise≥5%; Widthwise≥12%
  • Tensile Strength:Lengthwise≥1.25N/mm^2; Widthwise≥1.00N/mm^2
  • Notice: Please notice that it is normal to observe NiO peaks in the nickel foam in XRD data. It is really difficult to avoid the oxidation of the nickel.
  • How to clean the Nickel Foam for Battery Cathode Substrate.
    1. It can be removed the NiO by annealing in the hydrogen furnace.
    2. Nickel foam (about 3.3 cm x 1 cm) was carefully cleaned with the concentrated HCl solution (37 wt.%) in an ultrasound bath for 5 min in order to remove the surface oxide layer. And then deionized water and absolute ethanol were used for 5 min each to ensure the surface of the Ni foam was well cleaned.
