AE Pinnacle Plus+ Series

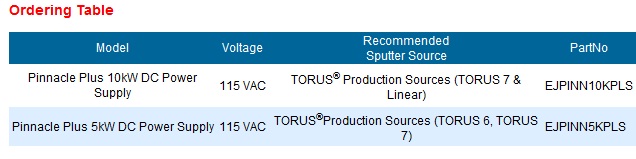

Advanced Energy’s Lesker Pinnacle Plus+ power supply provides all of the advantages of a pulsed-DC solution for your reactive processes— in a one-box package that delivers additional benefits in the form of ease of use, cost savings, and superior flexibility. Combining standard DC technology and process-proven pulsed-DC technology patented by AE in the 1990s, the Pinnacle Plus+ power supply provides higher deposition rates, more repeatable performance, and exceptional film quality compared to complicated and expensive AC-power solutions. The Lesker Pinnacle Plus+ product line consists of single-output 5kW and 10kW models, as well as a dual-output 5kW model.


  • Compact package
  • Adjustable frequency range from 5 kHz to 350 kHz
  • Variable duty cycle up to 45%
  • Wide voltage and impedance ranges (single-tap)
  • Superior arc control
  • Dual output for multi-chamber use
  • Reactive sputtering closed-loop control
