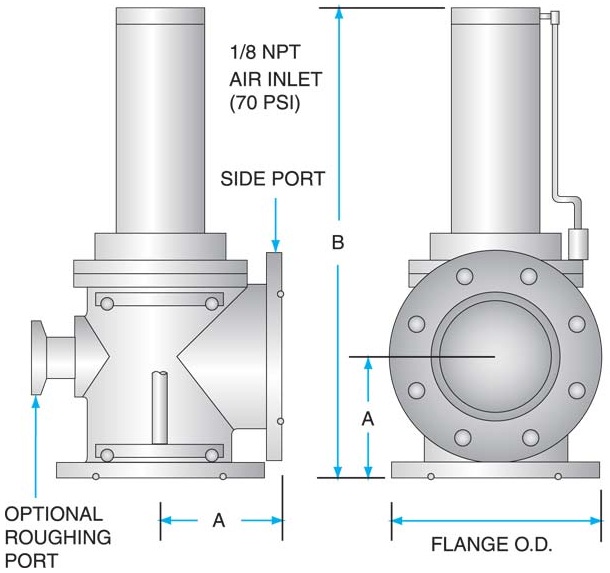

Pneumatic Bellows Sealed Al Angle Valves (ASA flanged)

Features

• These HV angle valves feature an all-welded, 6061 aluminum body
• Automatic closure on power failure
• High-conductance round port
• Very low outgassing rate
• Leak tests have demonstrated He rates of 2 x 10^-9 scc/sec.
• Include a 120VAC solenoid for pneumatic actuation (other voltages available upon request)

ISO Flanged

Features ISO-K flanges with fluorocarbon o-rings in an easy-to-maintain bonnet design.

Options available on request:

• Remote position indicator
• Roughing ports

ASA/ANSI Flanged

Features ANSI flanges with fluorocarbon o-rings in an easy-to-maintain fluorocarbon-sealed bonnet design.

Options available on request:

• Remote position indicator
• Roughing ports
• Two o-ring grooved flanges standard; call for other configurations
