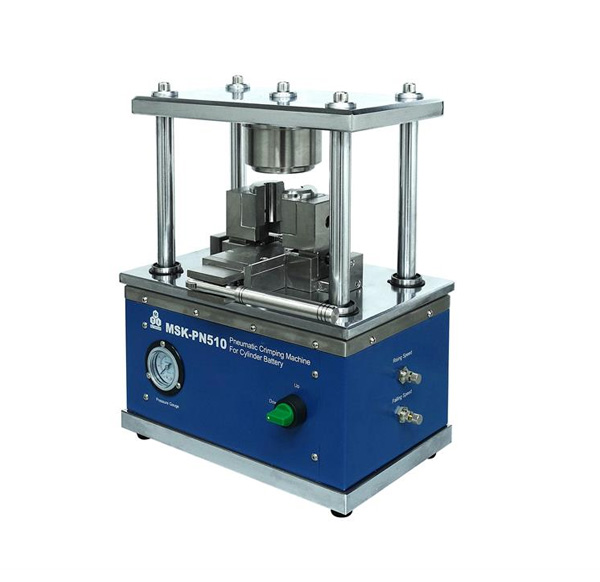

Pneumatic Crimping Machine for Cylindrical Cases (Optional: 32650, 26650, 21700, 18650, etc) - MSK-PN510

Pneumatic Crimping Machine for Cylindrical Cases (Optional: 32650, 26650, 21700, 18650, etc) - MSK-PN510

0.0/5 rating (0 votes)


The MSK-PN510 pneumatic crimping machine is driven by a cylinder to realize the packaging process for the cylindrical battery. The standard configuration mold can be used for the sealing of 18650 batteries. After replacing the mold, other cylindrical batteries (such as 26650) can be sealed.

MTI has granted the patent 201120464653.7 for the Cylindrical Cell Pneumatic Crimper MSK-PN510 since July 2012.

MSK-510M is updated with two-step precision crimping dies for 18650/21700 batteries since Oct. 1, 2021. The second step ensures a high-quality wrinkle-free seal on a properly grooved case.


  • Compact and lightweight, it can be conveniently placed in a glove box through the front window.
  • The sealing die is driven by a pneumatic cylinder with adjustable pressure.
  • Compressed dry air or inert gas cylinders can be used ( buy Ar gas is preferred to keep glovebox atmosphere purity )
  • The pressure gauge is built in the crimper to keep the pressure consistent.
  • The standard cropping die of 18650 is included for immediate use.  If you need other dies, such as 21700, or 21650, please let us know in advance.  (not suggest that customer change the die by themselves)
  • The pure pneumatic operation, no electricity, easy to use
Sealing Pressure Manual valve control, maximum pressure 1MPa, recommended pressure 0.7MPa, accuracy ±0.5%
Sealing Stroke 25mm
Crimping Dies
(the standard die is 18650)
Six standard die selectable: CR123 /18650 / 21700/ 26650 / 32650 / AA /AAA
    (please choose from Die Set Option above )
Compressive Gas
  • Inert Gas Tank or Air Compressor (0.7~1Mpa) is needed for the machine operation, please purchase separately.
  • Must use high purity inert gasses (Ar or N2) when operating inside the glovebox.
  • For the operation outside the glove box, you may use Air Compressor. ( not included)
  • Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
            pic1                pic2
Compliance CE certified
  • One year limited with lifetime support
  • Parts rusted without regular cleaning and maintenance are not covered
Product Dimensions    370mm(L) x 240mm(W) x 380mm(H)
Operation Video
Application Notes

Cylinder Cases and Related Components
Click here to order the spare cylindrical case
  • Customized die for other cylindrical cell types is available upon request
  • It is necessary to groove the opening end of the cylindrical case by using the MSK-500 grooving machine before sealing the cap
  • Each type of cylinder cell can only be sealed specifically by a certain model of this equipment. Please select the type of cylinder cell in the Product Options dropbox to check the model number and price for the corresponding crimping die of each cylinder cell type
  • Please check the chart below to order the cylindrical cases.
  • Note:  MTI crimping dies only match the case supplied by MTI
P/N Description (click to view details)  Case Dimensions
EQ-Lib-CR123 100 pcs CR123 cylindrical case
EQ-Lib-18650 100 pcs 18650 cylindrical case


250 pcs 21700 cell case
EQ-Lib-26650 100 pcs 26650 cylindrical case
EQ-Lib-32650 60 pcs 32650 cylindrical case
Net Weight ~33 kg (73 lbs)
  • Please don't use the hydraulic crimper inside the glove-box to avoid oil-leaking.  If you have to use it inside the glovebox, please choose compressed driven crimper
  • The compressed gas-driven crimper is available upon request
