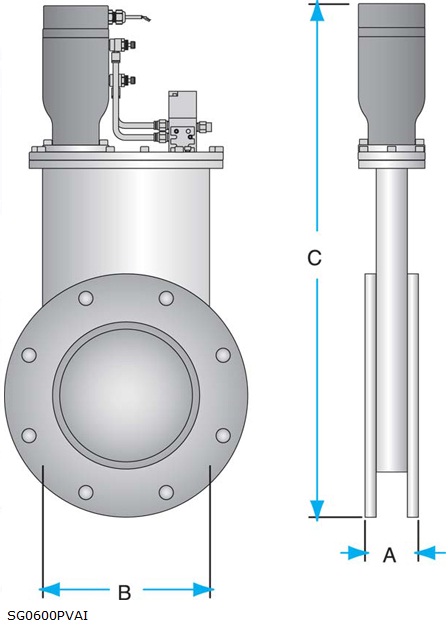

Pneumatic Million Cycle SS Gate Valves (ASA flanged)

Used with cryopumps, turbomolecular pumps, and ion pumps; ideal for applications requiring clean, high-vacuum, low-maintenance valves.

• Rugged valves share the design features of the standard valves
• Enhanced to withstand 1 million+ cycles before requiring service
• Bellows reinforced for longer operating life
• All moving joints are made of 304 stainless steel, hardened to increase durability, reduce particulate generation, and provide smoother actuation
• Maintain closed status in the event of a power failure
• Feature fluorocarbon seals (bakeable to 150° C) and electropneumatic operators
• Body-mounted solenoid with manual override provides easy control
• 120 VAC Solenoid incorporates speed controls for smoother actuation
• 1.5" to 12.0" models are equipped with magnetic reed switches for position indicator

NOTE: Available options include larger sizes, microswitches, custom flanges, and latching-type solenoids. Please call if ordering options.

NOTE for ASA/ ANSI only: To specify o-ring grooves, add appropriate suffix to end of aprt number when ordering. No extra charge! GT-groove on top side, GB-groove on bottom, GC-grooves on both sides.
