Polyfluortetraethylene (PTFE) Sealing Flange (One End) with KF-25 Port for 80mm dia. Processing Tube - EQ-FG-80PTFE-OE

0.0/5 rating (0 votes)

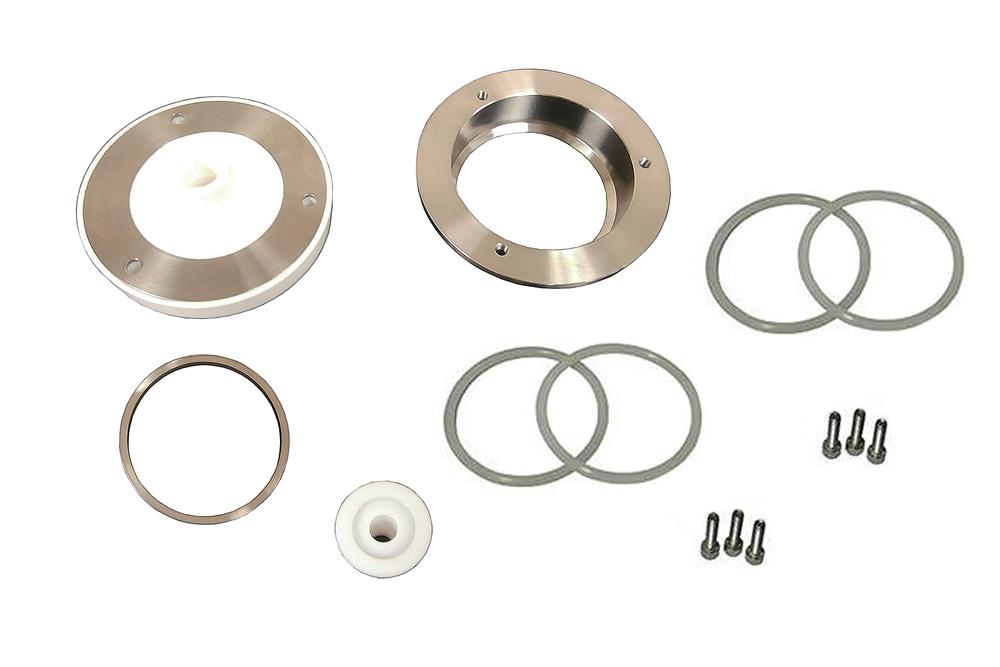

This is an one end of sealing flanges made of polyfluortetraethylene (PTFE) for 80 mm diameter processing tube.
  • Made of polyfluortetraethylene (PTFE) with double high temperature silicon O-rings on flange.
  • PTFE KF-25 Port
  • The assembly kit will seal one end of 80-82 mm diameter ceramic and quartz tube.
  • Vacuum pressure can reach 10-5 torr with suitable pump.
  • Max. working temperature:  250ºC
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
  • Note:
    • A thermal block must be placed in the end of furnace to reduce heat radiation, otherwise the PTFE flange may melt off if furnace temperature  is higher than 500ºC.
