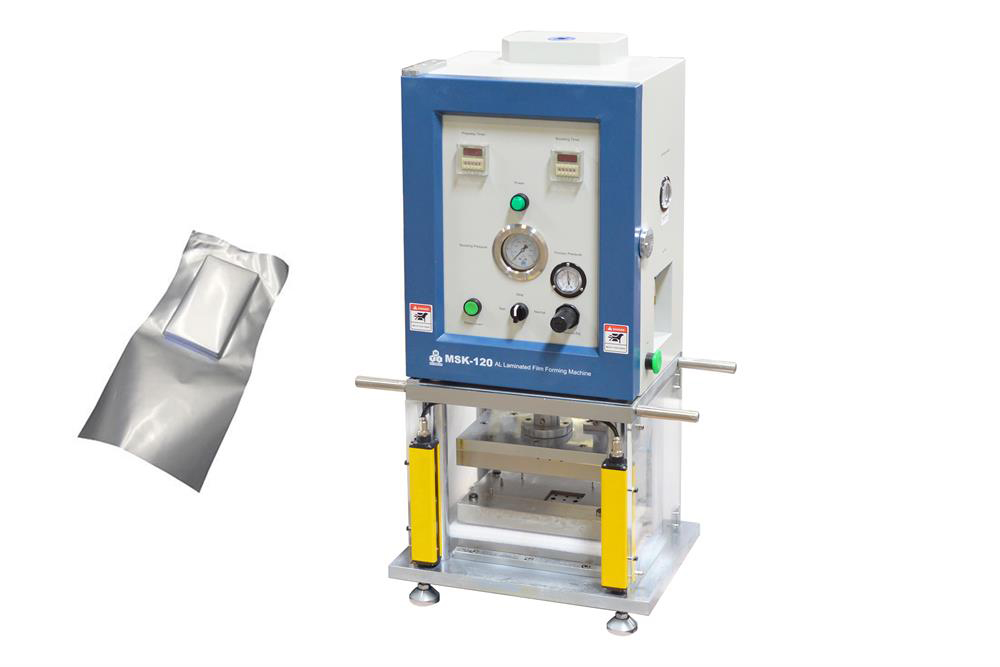

Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films with Optional Die - MSK-120 / MSK-120L

MSK-120 is a CE Certified cup forming machine used in the production line of making pouch cell batteries with two optional size ranges (small: Max. 150 L x 120 W x 6 H, mm) and (larger: Max 350 Lx 280 W x 6 H, mm). It is used to prepare polymer cases made of Aluminum Laminated Films. To ensure continuity and compatibility for customer research, adjustable depth (spacers are included in the standard package) to directly match the electrodes cut by the MSK-180 electrode cutting machine.



Model	MSK-120	MSK-120L
Standard Die Size Optional: The die of cylindrical type pouch is available at an extra cost	One standard die is included (NOTE: the standard die sizes have been updated from 85mm (L) x 60mm (W) x 3/4/5/6 mm(H) since July 2015.) 62mm (L) x 46mm (W) x 3/4/5/6 mm(H), which perfectly fits the electrodes cut by MSK-180	One standard die is included 200mm (L) x 150mm (W) x 3/4/5/6 mm (H)
Customized Die Size	The customized die is available upon request Max. die size is 150mm L x 120mm W x 6mm H	The customized die is available upon request Max. die size is 350mm L x 280mm Wx 6mm H
Air Pressure Requirement	0.4 - 0.6 MPa (Air Compressor is not included.) please click here to order or order from your local store.	≥0.6MPa
	Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.            pic1                pic2
Max. The distance between Top and Bottom Die	75mm	N/A
Working Voltage	INPUT: 24VDC (Since 03/31/2017) UL/CSA listed 100 or 220VAC IN - 24VDC OUT power adapter is included.
Max. Power Consumption	200 W
Max. Cup Depth to Punch	< 6.0 mm
Max. Punching Pressure	5 metric tons
Stroke Frequency	< 8 seconds per trial
AL Laminated Film	The thickness of Aluminum Laminated Film:  0.11 - 0.20 mm acceptable Please click the picture below to order Aluminum Laminated Film
Optional & Upgrade	Roll to Roll automatic processing device is available upon request
Accessories	All necessary accessories are included for immediate use  (see standard package list at the bottom）
Compliance	CE certified NRTL or CSA certification is available per the customer's request at the extra cost
Warranty	One-Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Operation Manual & Video
Product Dimensions	590mm(L) x 350mm(W) x 960mm(H)	600mm(L) x 450mm(W) x 1300mm(H)
Net Weights	120 kg (265 lbs)	400kg (880lbs）
Shipping Size & Weight	47" x 39" x 56"	48" x 40" x 64"; 1,020 lbs
