Precision CNC Dicing / Cutting Saw with Digital Controller and Complete Accessories - SYJ-800

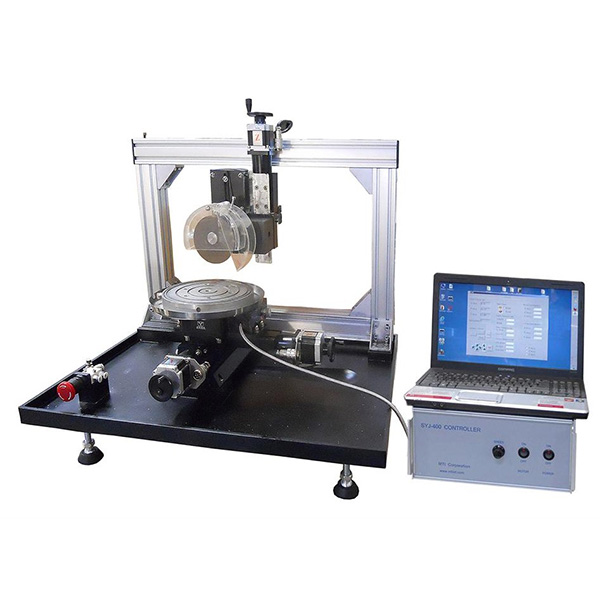

SYJ-800 is a dicing saw, designed for dicing and cutting almost all kinds of materials up to 8" diameter wafer or 8" L x 8" W x 1" H components. The SYJ-800 saw can be programmable by computer with position accuracy of 0.01 mm in X, Y, Z, R four dimensions and the sample stage can be rotated by an electric motor to cut sample at any angle with +/- 0.5° tolerance.  It is an excellent tool for dicing Al2O3 ceramic sheets and Si or Ge wafers for electronic substrates and solar power panels.

Voltage	AC 220V (AC 110V 50/60Hz is available with ordering a 500W transformer)
Motor	1/2 HP high torque DC motor with 0 - 3000 RPM
Effective Dicing Range	Dicing Area : X-axis: 8", Y-axis: 8"   Dicing Depth: depended on cutting blade diameter: 4" Blade's Max. dicing depth <= 2 mm 6" Blade's Max. dicing depth <= 20 mm If sample area <= 2"x 2",  cutting depth can reach Max. 2" by 6" blade and suitable flange Rotation: 180° by the motor (rotate speed/degree programmable)
Moving/Cutting Speed Range	X-axis: 1-50mm/min adjustable Y-axis: 1-50mm/min adjustable Z-axis: 1-20mm/min adjustable
Rotation Speed Range	Max. 120°/min
Accuracy	0.0025 mm moving resolution and +/- 0.01 mm position accuracy.
Dicing Blades	Two diamond blades are included: One 4" Dia x 0.014"(0.35mm) (thickness) x 0.5" arbor fully sintered diamond blade (fig.1) One 6" Dia x 0.014"(0.35mm) (thickness) x 0.5" arbor edge sintered diamond blade (fig.2) Two water splashing protectors are included. One for 4" blade and another one is for 6" blade (fig. 3,4) Optional Exta Thin Blades are available at extra cost: 100 mm OD x 0.1 mm Thickness Diamond Cutting Blades with 0.5" Arbor Flange (fig. 5) Dicing blades are consumable, please click the picture below to order spare                     3    4    5
PC software	Laptop and PC software is provided with the equipment Cutting parameters can be set in the software such as cutting length, width, time, feed speed, kerf loss, etc. Rotation is controlled independently Manual or programmable control mode compatible with Win 7/8/8.1 Click the pic left to view the software interface
Sample Stage and Holder	One 220mm diameter glass sample plate and 8" vacuum chuck are included (The glass sample plate has a flat surface which can be soaked and hold in position by a vacuum chuck. Also, the glass plate can prevent the vacuum chuck from being damaged by the saw blade during the cutting process.)
Water Cooling	Assemblies of water jetting, draining, and splashing protection is included. The optional EQ-ECO-430 Coolant Circulating Tank is NOT included, please click the link to order if needed.
Net Weight	90 kg
Shipping Weight	290 lbs
Dimensions	Machine: 734 x 564 x 710 mm  Control box: 340 x 260 x 190 mm
Shipping Dimension	55'' x 39" x 44"
Warranty	One year limited with lifetime support --- including all electronic and mechanical parts. Damaged parts caused by misuse: such as rusted parts from inadequate storage and broken parts by the user are not covered by the standard warranty.
Certification	CE Certified. With an additional certification fee, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per customer's request.
Operation Instructions
Application Notes	Click here to learn how to mount/ align the sample Instruction for SYJ-400 & SYJ-800 turning off windows automatic update Applications on various materials For cutting the sticky materials such as non-ferrous alloy, epoxy, and plastic, we must sharp diamond blade open, or cut sample along with the included dressing stone (Glue sample and the dressing stone side by side and cut them together, which will help keep the blade sharp enough for efficient cutting.)
