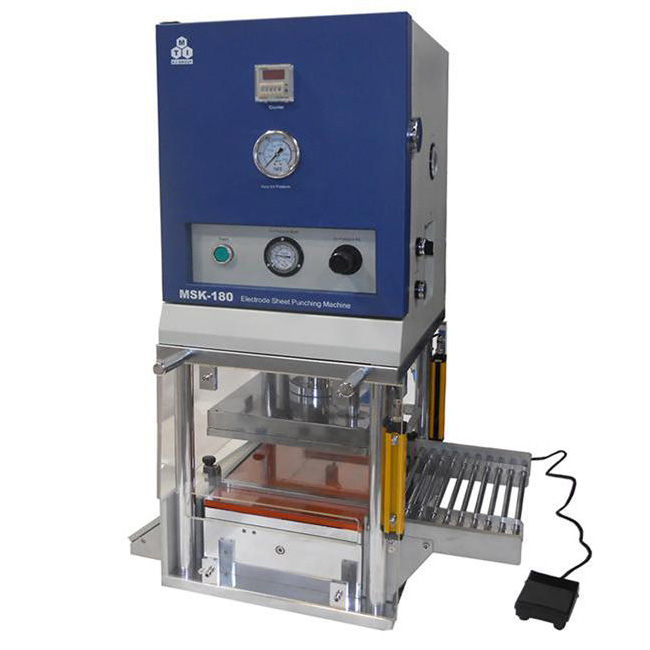

Precision Die Cutter for Pouch Cell electrode Sheet with Two Size Range Optional - MSK-180/MSK-180L

0.0/5 rating (0 votes)

Description

MSK-180 is a CE Certified Precision electrode die cutter with an optional size range ( MSK-180 or MSK-180L). It is a necessary tool in the production line of pouch cells to produce specific shapes of cathodes and anodes with current collector tabs. The size of the electrodes it cuts perfectly matches the standard pouches made by the MSK-120 cups forming machine, and the shape of the electrodes it produces is also handy for the later processing steps of tab welding by MSK-800 and electrode stacking by MSK-111A. The IR sensor (Safety Curtain) built in the front of the machine ensures operation safety when electrode sheets are fed from the front.  New version MSK-180L with a large working area is available as optional!

MTI has granted the patent 201220308662.1 for the Pouch Cell Die Cutting Machine MSK-180 / MSK-180L since January 2013.



SPECIFICATIONS:

Model MSK-180 (one cutting die included)
MSK-180L (not cutting die, pls provide die size for quote
Working Table Area 300mm(L) x 250mm(W) 400mm(L) x 400mm(W)
Die Set Dimensions
Customized size die is available upon
request at extra cost
  New: Two standard electrodes (Cathode & Anode) cutting dies are included for immediate use. 2 pcs of electrodes can be produced per cut. (Please change it when getting dull)
(NOTE: The standard cutting die sizes have been updated from 81.5 x 47.8mm (cathode) and 81.5 x 48.3mm (anode) since April 2015)
  • Cathode Die: 56 (L) x 43 (W)  mm with a 10mm (L) x 10mm (W) protrude current collector
  • Anode Die: 58mm (L) x 45mm (W) with a 10mm (L) x 10mm (W) protrude current collector
  • Customized die with Max. area 280 x 230 mm,
electrode die cutter
  • No standard die included. Please order a customized die within 380X380mm at an extra cost
  • Please provide your desired cutting die size when RFQ
          electrode die cutter
Working Voltage

INPUT: 24VDC (Since 03/31/2017)
The UL/CSA listed 100 or 220VAC IN - 24VDC OUT power adapter is included

24VDC input
UL listed power adapter is included
Max. Power Consumption 10W
Safety Sensor
electrode die cutter
Built-in IR sensor (Safety Curtain) to protect against hand injuries during electrode feeding
Cutting Accuracy ±0.1mm
Air Cylinder 3 tons Max. pressure
Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator
           pic1                pic2
Tensile Cylinder 0.15 tons of pressure
Feeding Manually
Production Yield 800 - 2000 pieces of electrodes per hour
Compliance
  • NRTL or CSA certification is available at $4000 extra.
Warranty One-Year limited warranty with lifetime support
Optional & Upgrade
  • You may need a matching case forming machine MSK-120(Please click the picture-1 to view)
  • Please order pre-formed pouch cell case and other accessories  by click picture-2/3 below
  • For Roll to Roll (R2R) automatic processing function, please check out MSK-180-AM (Pic. 4)
  • Please click to order more Consumable Clear Acrylic Sheet from us
Pic-1 Pic-2 Pic-3 Pic-4
Operation  Video   How to operate            How to make pouch cells
Air Pressure Recommend 60 psi (Air compressor is not included    Please click here to order) Recommend ≥0.6MPa (Air compressor is not included)
Product Dimensions 550mm(L) x 450mm(W) x 900mm(H) 580mm(L) x 480mm(W) x 1120mm(H)
Application Notes     A perfect fit for the cases formed by the standard size of          MSK-120, with no rough edge, clippings, or creasings Updating soon!
Net Weight 120kg (265 lbs) 140kg (309 lbs)
Shipping Weight & Dimensions 490 lbs; 47" x 39" x 48" 845 lbs; 47" x 39" x 58"
