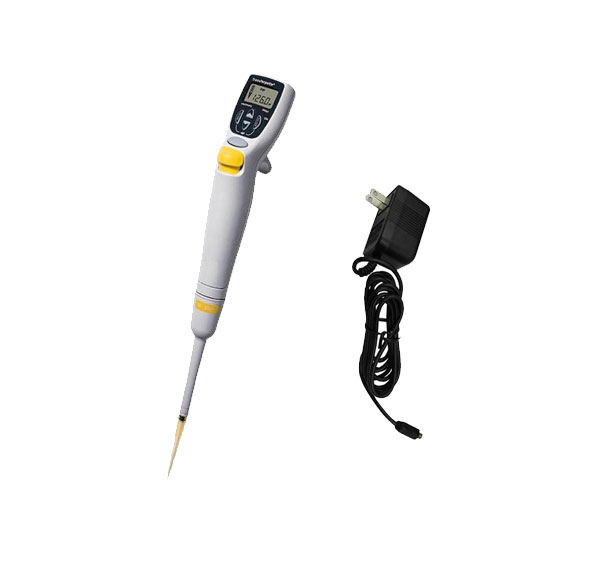

Precision Electronic Single Channel Pipette: 20 - 200uL with Battery & Charger - BD-200UL-LD

Precision Electronic Single Channel Pipette: 20 - 200uL with Battery & Charger - BD-200UL-LD

0.0/5 rating (0 votes)


The BD-200UL is an ergonomic, intuitive electronic pipette made in Germany used for dispensing electrolyte (LiPF6 for Li-ion Battery) to small Coin Cells from battery research and material coating for Spin Coating in most material research laboratories.
The soft-touch pipette key, adjustable finger-rest, lightweight and innovative tip cone minimize static strain and operational forces, reducing the risk of repetitive stress injuries (RSI). This is the first electronic pipette to be awarded the “Ergonomics Approved” and “User-Friendly” certification from the prestigious TÜV testing service, an OSHA-accredited testing laboratory.
MTI carries 20 -200uL (0.02 - 0.2 mL) volume range in stock, but it is also available in five-volume ranges for reliable dispensing of volumes from 0.5µL to 5mL upon request.


Volume (uL)

  • 20 - 200
  • 0.5 - 10 (upon request)
  • 2 - 20 (upon request)
  • 100 - 1000 (upon request)
  • 500 - 5000 (upon request)

Five Operating Modes Simplify Most Pipette Applications

Choose from five convenient operating modes that are simple to set and simple to use: standard pipette, sample mixing, reverse pipette, step dispensing, and gel loading. A large, clear LCD screen with clear operational symbols and words makes settings obvious. Step easily between modes without complicated programming. Easily removable autoclavable shaft protects sterile operations.

Reduces Imprecision and Inaccuracy

The microprocessor-controlled pipette automates the piston movement to greatly reduce the imprecision and inaccuracy caused by operator inconsistency. Speed controls let you work as fast as you like, or as slowly and carefully as you need. Distinctive “gel mode” discharges the pipette very slowly into electrophoresis gels, and even tracks dispensed volume as you dispense!

Make Calibration Adjustments in Seconds

These pipettes are equipped with an innovative Easy Calibration™ system that reduces the need for off-site calibration and simplifies conformity with ISO/GLP guidelines. Rechargeable battery powers over 4000 pipetting cycles with each charge, and even includes a battery “refresh” function that extends the battery life! Unique tip cone (patent pending) adapts to universal tips from nearly all manufacturers, so you’re not locked into a single tip supplier.


Operating limits and exclusions Liquids unsuitable for use with the pipette include, but are not limited to, those with
  • High vapor pressure or high viscosity
  • Reagents that attack PP (single channels) or PP
  • The temperature of instrument and reagent must be between 59° and 40°C  (15° and 104°F)

Standard package

  • Rechargeable Battery
  • UL LISTED Power AC Adapter/Charger, (INPUT Power:100-240 V, 50~60Hz,0.3A MAX)
  • One pipette tip-sample pack (single channel only)
  • Operating manual
  • One-year warranty

Replacement Tips

Please click the picture below to order replacement pipette tips.
