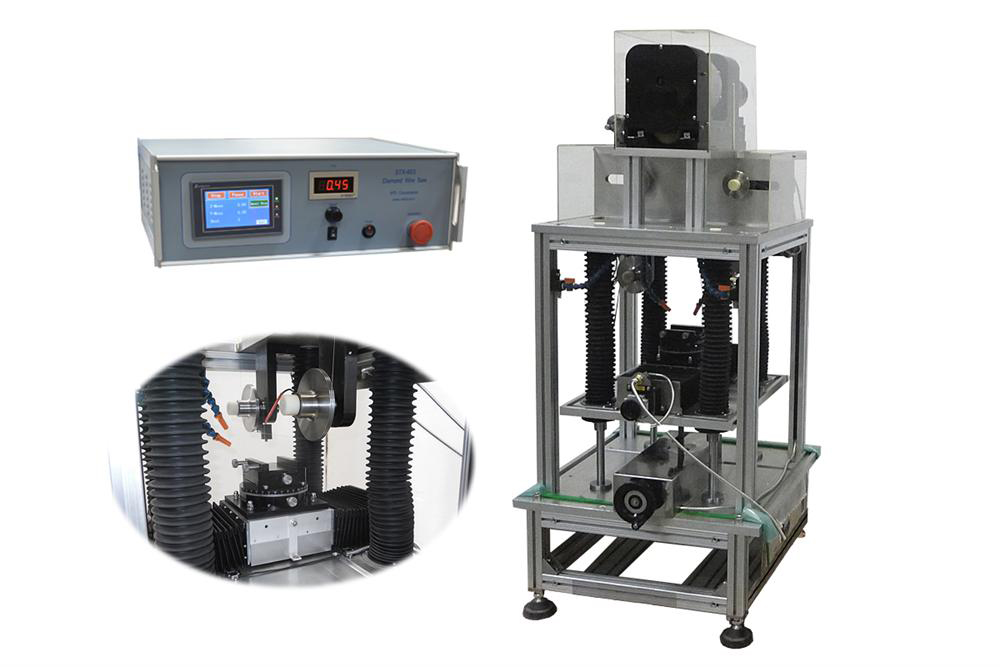

Precision Wire Saw with Sample Stage and Diamond Wire - 6" Dia Cutting Capability - STX-603

STX-603 is a CE certified precision diamond wire saw is designed to provide smooth cutting or slicing for all kinds of materials, especially for larger size crystals, such as Si, Ge, and GaAs, etc., up to 6" (155 mm) diameter.  It cuts the crystal by a diamond impregnated wire (0.28 mm diameter) which moves repeatedly backward and forwards with the help of a digital controller. STX-603 is equipped with an adjustable sample holder with three angles.

SPECIFICATION

Power Input	AC 220V, 50/60Hz, 350W
Structure	Heavy-duty Aluminum alloy
Cutting Speed	Feed Speed: 0.01 mm/min to 40 mm/min adjustable Back Speed: 1 mm/min to 40 mm/min adjustable
Wire Moving Speed	0 ~3 m/s
Controller	Digital 6" color touch screen
Diamond wire	Ø 0.35mm x 80m Length
Z and Y-Axis Max. Traveling distance	160mm (±0.01mm accuracy)
Sample Stage	Moves in the X-axis and rotate towards two directions (clockwise and counter-clockwise) for precision orientation.
Sample size	Max. 160mm x 160mm
Wire Tension System	Built-in pneumatic valves can easily adjust the tension of cutting wire. (air pump is not included)
Meteorite Sample	Please click the picture below to view the meteorite samples that were cut by our wire saws.              Fig. 1      Fig. 2   Fig. 3      Fig. 4
Dimensions	Saw: 700mm x 620mm x 1500mm (L x W x H) Controller: 490mm x 400mm x 170mm (L x W x H)
Shipping Weight & Dimensions	580 lbs; 48" x 40" x 72"
Warranty	Two years limited, not including diamond wire and rusted parts.
Certification	CE Certified. With additional certification fees, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per customer's request.
Instruction and Video
Application Notes	The flow rate of the coolant is adjustable by the valve in the blue feeding tubing. Please adjust it properly to improving cutting performance.  Please use the correct cutting fluid. Don't use tap water or any other fluid that would cause corrosion of machine parts.  Must clean the machine after each use. Wire saws applications
Warnings	It is required to use proper cutting fluid with the saw to prevent corrosion of the machine components. We strongly recommend you use oil-based coolant or lube cool lubricant with the water. Do not use tap water directly, rusted component is not part of the warranty. Never cut any materials without the use of proper cutting fluid. If you do so, serious damages can be caused For cutting the sticky materials such as non-ferrous alloy, epoxy, and plastic, you must sharpen diamond wire frequently. We suggest that cutting sample along with the included dressing stone (Glue sample and the dressing stone side by side and cut them together, this process will help keep the wire sharp enough for efficient cutting.  Please clean the machine after the completion of each use.
