Pressure Controlled & Airtight Split Coin Cell w/ Optional Size For Coin SSB Research - EQ-PSC

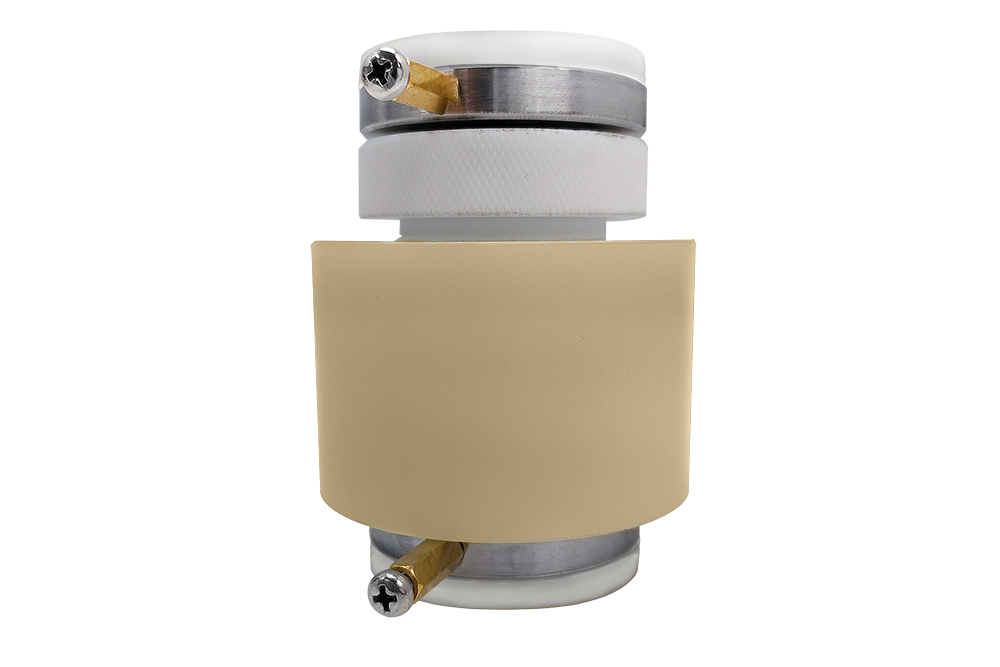

EQ-PSC is a split-able and air-tight coin cell set with a sleeve made out of Nylon or PEEK. The split cell can be placed in a lab press and applied pressure up to 20 MPa, which is designed for researching the effect of pressure on solid-state battery performance. It can also be used for easy coin cell assembling without any screw and crimping tool. It can be customized into various sizes (8, 10, 12, 15, 20, and 25 mm diameter) to accept all sizes of electrodes and separators. (Please choose the size and material from Product Options)
Note: Customized (Au coated) test cells are non-returnable and non-exchangeable.
MTI has granted the patent 2016205216100 for the Pressure Controlled (up to 20 MPa) Split Coin Cell - EQ-PSC since June 2016.

 SPECIFICATIONS

Structure & Material	Pushing rods (top and bottom) are made of stainless steel. (Gold plating is available upon request at an extra cost) Sleeve Material: Nylon or PEEK is selectable at the product option. Poly Ether Ether Ketone (PEEK) is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures. (Click here to see properties)
Instruction How to Use	Simply put electrode, separator, and electrolyte materials into the die with no screws required Place the die into a compact lab press to apply pressure without crimping (click pics 1-2 to order lab press) Connect the current leads from pushing rods to a battery analyzer for testing You may use a thickness fixture (Pic 3 ) to measure the expansion of assembled battery during charging & discharging You may use a digital press to apply pressure ( Pic. 4)           Pic. 1  Pic. 2         Pic. 3             Pic. 4
Max. Working Pressure	20 MPa (Nylon and Peek)
Max. Working Temperature	150C (Peek) 90C (Nylon)
Au Coating （optional）	Au coating is available for pressing dies at an extra cost Please click here to order your own gold plating kit.
Compliance	Patent Granted: 2016205216100 for the Pressure Controlled (up to 20 MPa) Split Coin Cell - EQ-PSC since June 2016
Dimensions	Split Cell Drawing    Available in various inner sleeve sizes: 8, 10,12, 15, 20, and 25 mm diameter  (Φ15 mm)
Demo Video	Video: How to use the split cell              Video: How to make a solid-state battery
Application Note	O-Rings are consumables, please order a spare set here Optional: Purchase a vacuum pen for easy component placement                   Please view "J. Electrochem. Soc.-2013-Piper-A77-81" published by Journal of The Electrochemical Society, 160 (1) A77-A81 (2013) for reference
