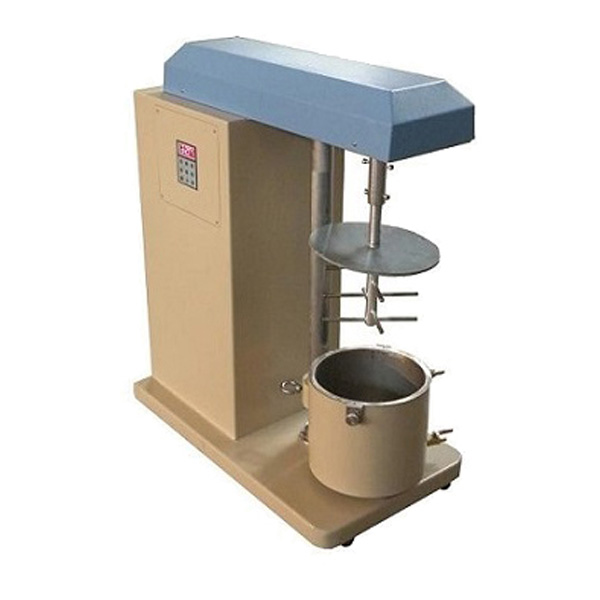

Programmable Rotor Mill with 5L Stainless Steel Tank and Water Cooling Jacket- MSK-SFM-5

EQ-SFM-5 is designed for making a larger batch of chemicals and compounds (5 liters) via blending and media milling in single container. It is excellent for preparing LiCoO3, LiFePO4, Phosphorus, and various other ceramic materials in a medium quantity. Equipped with a 1250W motor capable of generating a rotational speed up to 1200 RPM, it allows for the homogenization of chemicals with slow or high speeds using a multi-layer blending blade. The digital controller makes it easy for the user to program the speed, time, and rotating direction desired for each mixing session. SPECIFICATIONS

Features	5-liter stainless steel container with a water cooling jacket. Stainless steel blending rod with multi-layer blending blades; rotary speed adjustable from 0-1200 RPM. Programmable controller to set time, speed, rotation direction according to application needs. An extra 5L stainless steel container is available as an option.
Max. Size of Input Particles	20mm
Min. Size of Output Particles	1 micron  with suitable grinding media, please click pic below to choose Note:  To achieve the best result,  the user need to test to find the suitable grinding media, speed and time
Voltage	208- 240VAC,  Single Phase, 15A Max. (110V AC available upon request) Note: 220V AC Power plug is not included while customers choose the 220V version. Please click here to order the plug)
Power	AC motor at 1250W Max.
Rotor Rod Speed	0-1200 RPM variable
Water Cooling	> 10L/minute water cooling flow is required to cool the container Please order recirculating water chiller by clicking the picture below at extra cost to save water
Dimensions	700x600x1100 mm (L x W x H)
Shipping Weight & Dimensions	300 lbs; 48"x40"x47"
Compliance	CE certified
Warranty	One year limited with lifetime support
Application Notes	Utilities required ( 4L / min water cooling is required) You may order our recirculating water chiller for water cooling and save water -- please see the related products below It is suitable for wet blending and mixing only and not suggest for use drying mixing or ball milling.
Operation Demo Video
