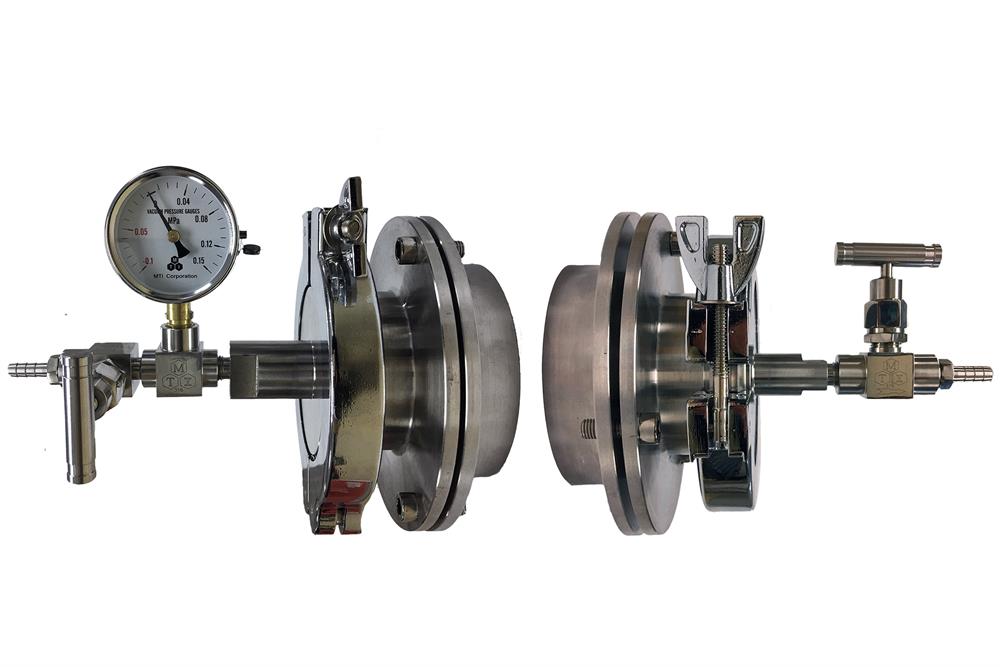

Quick Clamp Vacuum Sealing Assembly for 100mm dia Tube Furance with KF50 Vaccum Port - EQ-FL-100QC

0.0/5 rating (0 votes)

Description



This is a quick clamp vacuum sealing assembly for a tube vacuum furnace tube of OD 100 mm with no welding or gluing needed. SPECIFICATIONS

    Features
  • Stainless steel flange with double high-temperature silicone O-rings.
  • Seal tube by tightening screws on the flange with no welding and glue needed.
  • Clamp allows quick access to content inside the furnace.
  • High-temperature silicone O-ring and centering ring at flange cap.
  • 1/4" in diameter vacuum sealing assembly connects with a rubber hose.
  • Ideal for any type of tubing: ceramic, glass, quartz, and steel pipe.
    Vacuum Level
    Optional Parts
                        1                                 2                                    3                               4                               5

    Video
   How to install the flange
          How to install the quick-clamp flange
    Dimension

  •     Outer and inner flange dimension ( click drawing to see )
    Warning
  • A refractory tube block is required in front of the flange to avoid silicone O-ring melting.
    Please consider purchasing our ceramic Tube Block
  • This product is heavy, flange support is required to avoid damage to the furnace tube.
