Quick Clamp Vacuum Sealing Assembly for 80mm dia Tube Furance with KF50 Vaccum Port - EQ-FL-80QC

0.0/5 rating (0 votes)

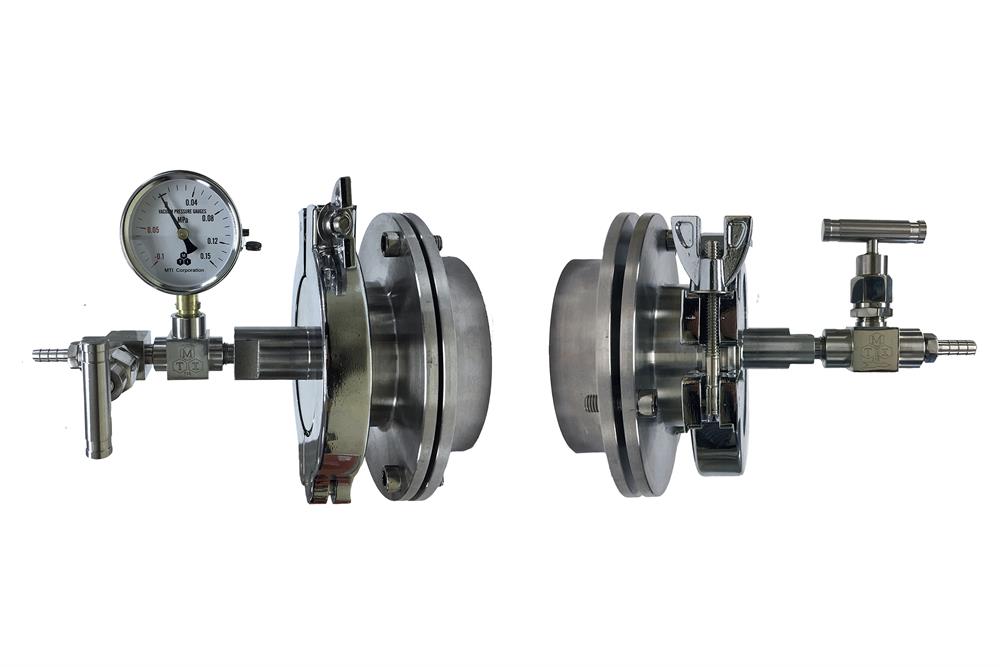

This is a quick clamp vacuum sealing assembly for tube vacuum furnace tube of OD 80 mm with no welding or gluing needed. SPECIFICATIONS

  • Stainless steel flange with double high-temperature silicon O-rings.
  • Seal tube by tightening screws on the flange with no welding and glue needed.
  • Clamp allows quick access to content inside the furnace.
  • High-temperature silicon O-ring and centering ring at flange cap.
  • 1/4" in diameter vacuum sealing assembly connects with rubber hose.
  • Ideal for any type of tubing: ceramic, glass, quartz and steel pipe.
  •                 Video
    Vacuum Level
    Optional Parts
                        1                                 2                                    3                               4                               5
  •   Outer and inner flange dimension
  • A refractory tube block is required in front of the flange to avoid silicone O-ring melting.
    Please consider purchasing our ceramic tube block
  • This product is heavy, flange support is required to avoid damage on the furnace tube.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
