Die Cutting

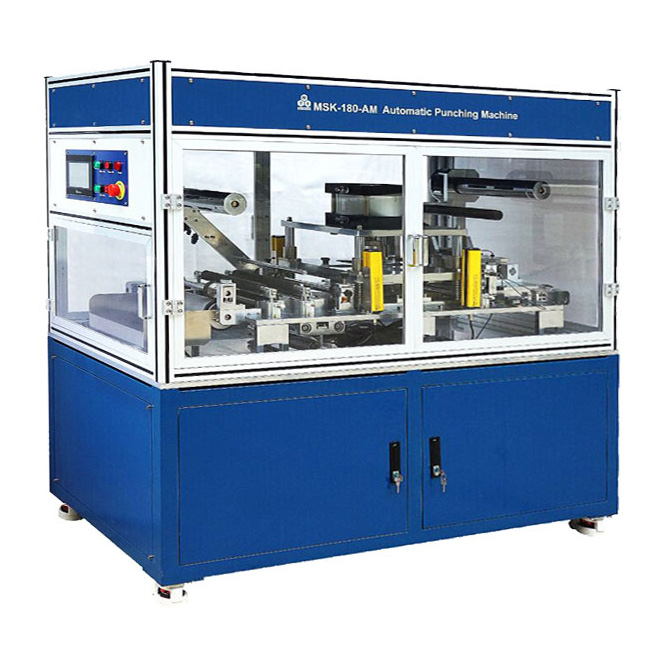

R2R Automatic Precision Die Cutter for Pouch Cell Electrodes - MSK-180-AM

0.0/5 rating (0 votes)


MSK-180-AM die cutter automates a precise and high-speed production of pouch cell electrodes (cathodes& anodes) with current collector tabs. PET conveyor enables the streamlined operation for material auto-feeding, die-cut, and final reel collection of wasted materials. Its high productivity makes it an ideal tool for pouch cell pilot line production.  patent 2017215277340 for the Pouch Cell Automatic Die Cutting Machine MSK-180-AM since June 2018.


  • The automatic, high-speed operation for maximum productivity
  • The stream-line operation for material auto-feeding, die-cut and final reel collection of wasted materials
  • PET made conveyor is contamination-free to the electrode materials
  • Adjustable cutting force and speed, integrated digital counter
  • Integrated IR curtain at the front for safe operations
Working Voltage & Power
  • 220VAC +/-10%, 50/60 Hz, single-phase, 1KW
Die Set Dimensions
electrode die cutter
  • The customized cutting die is available upon request
  • Max. cutting size: 250 mm L x 250 mm W
  • The cutting die set is not included in the standard package! Please provide detailed size requirements at the time of RFQ
Cutting Speed
  • 10 Pieces per minute
Cutting Thickness
  • Max. 0.5mm (cathode or anode electrodes)
Deviation Control
  • Auto deviation correction, ± 0.5 mm
Cutting Force
  • Max. 3 Ton
Cutting Precision
  • ± 0.1 mm
  • <20um burr
Driven Gas
  • Driven by any standard air compressor, which is not included. Please click the picture on the left to order.
  • 0.5~0.8MPa compress gas is required for operation.
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
  • One year limited warranty with lifetime support
  • CE certified
  • UL/CSA certification is available upon request
  • Patent 2017215277340 for the Pouch Cell Automatic Die Cutting Machine MSK-180-AM since June 2018.
Operation Manual & Video
Product Dimensions
  •     L1200mm*W800mm*H1700mm
Net Weight
  • 400 kg (880 lbs)
Application Notes
  • MTI Supplies ready-to-use Cathode & Anode Electrodes, Separator Film, and Laminated Aluminum Pouch for your research. Please click the picture below for product details.
  • MTI Supplies Nylon-made Splittable Pouch Cell Casing for Battery R&D, please click the picture below for more details.
