R2R Automatic Winder with Electrode Cutting off and Taping for Cylinder Cell 4680 - 46120 - MSK-112R-AL

0.0/5 rating (0 votes)

Description

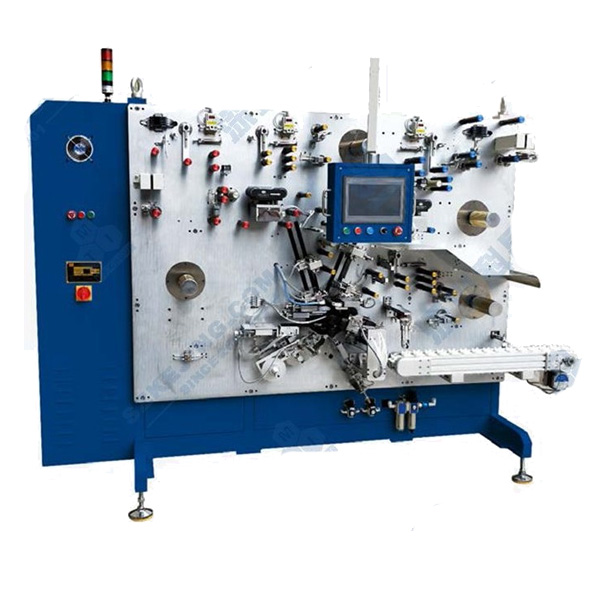

MSK-112R-AL is a fully automatic winding machine for assembling cylinder cells 4680 - 46120 cores (also known as “jelly roll”).
Roll to Roll Cathode & Anode Electrode Loading
Automatic Electrode Cutting off - Alignment - Winding - Taping and Manual Jelly Roll Unloading SPECIFICATIONS:
Features
  • Suitable for Cylinder Cell 4680 - 46120 Winding
  • Roll to Roll Automatic Electrode Feeding/Loading
  • Automatic Electrode Cutting off - Alignment - Winding - Taping and Manual Jelly Roll Unloading
  • Guide Slot Positioning for Cathode & Anode Electrodes
  • Winding Speed / Winding Length (Number of Winding) adjustable
  • High Precision Separator Tension Control
  • PLC Control / Touch Screen
Input Power
  • Voltage: Single-phase 208 - 240 VAC, 50/60 Hz
  • Power: 1,500 W
Compressed Air
  • Compressed air of 0.7 MPa is needed for the operation of this machine
  • Please note the air compressor is not included. Please click the picture below to order one at MTI, or order it from your local hardware store
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Cathode / Anode Feeding
  • Roll to Roll
  • Jelly Roll Structure: Cathode-Separator-Anode-Separator (From Outside to Inside)
  • Electrode Width Range: 30 - 95 mm Adjustable
  • Thickness range: 100 - 300 μm
Separator Feeding
  • Loading material: separator film rolls, such as polyethylene (PE) or polypropylene (PP)
  • Length range: separator roll with a diameter < 250 mm
  • Width range: 35 - 90 mm
  • Thickness range: 9 - 100 μm
  • High Precision Tension range: 0 – 4 N for both top and bottom separator films
Winding
  • Winding needle size: 3.5 mm OD
  • Electrode winding size: 14 – 46 mm OD, 35 – 95 mm in length
  • To wind an electrode core with a certain OD, a spreadsheet for calculating the needed number of turns and electrode sheet length can be downloaded here
  • Winding speed: 0 – 300 rpm adjustable
  • Winding precision: < 0.5 mm edge roughness
Taping
  • Roll diameter:   150 mm Max.
  • When the winding is finished, the tape will be applied to the winding core and cut automatically.
Size
  • 2,800 mm L x 1,700 mm W x 1,350 mm H
Net Weight
  • 800 kg
Warranty
  • One-year limited warranty on lifetime support
  • Rusting or damage due to improper storage conditions or maintenance is not covered by a warranty
Compliance
  • CE Certified
  • NRTL or CSA Certification is available upon request at extra cost
