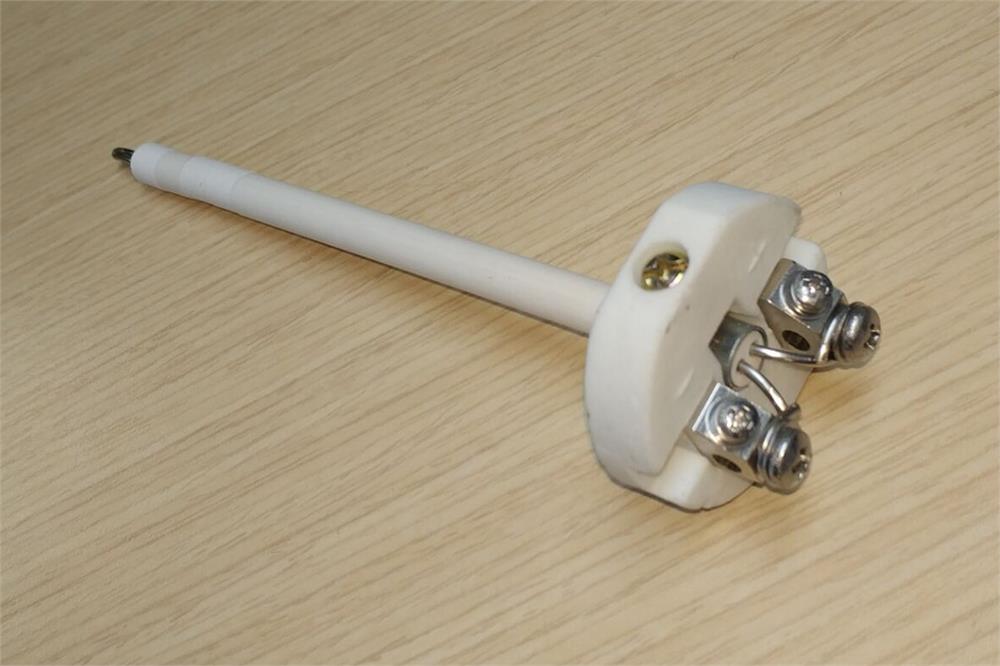

Ready-to-Use Thermocouple: K type (Ni-Cr/Ni-Al) 118.5 mm (4.6") Length with Ceramic Sheath - EQ-TC-K-11

0.0/5 rating (0 votes)

Description

Features:

  • K-type thermocouple probe for measuring high heat applications at temperature up to 1250oC
  • Suitable for room temperature - 1200oC series furnaces, such as the KSL-1200X-J
  • Ceramic end holder with screws to connect thermocouple to a temperature controller
   Specifications:
  • Length:                        118.5 mm (4.6")
  • Diameter of sheath:       8 mm, high purity Alumina
  • Positive Material:           Nickel-Chromium
  • Negative Material:          Nickel-Aluminum
  • Wire diameter:               1.5 mm
  • Lowest Temperature:     -200 oC
  • Highest Temperature:    1250  oC
  • Minimum Std. Error:      +/- 2.2  oC

  • A=77mm
  • B=41.5mm


Application Note:

  • If necessary, please check out K type thermocouple extension wire with male mini plug.
  • There are two polarities for K-type thermocouple: positive and negative. Please check the polarity of K type thermocouple before use. The wrong polarity may cause the temperature measuring error.
  • It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
