Rectangular Valve With Housing Cover

0.0/5 rating (0 votes)

Description



Applications

  • Plasma Etch, CVD, Sputter Deposition
  • Manufacturing of solar panels
  • Semiconductor processing
  • LCD/flat panel processes
  • All other cluster vacuum systems

Features

  • Removable valve housing cover
  • Semi standard application (Semi E21-94, Semi E24-92, Semi E21.1-1296)
  • Patented L-motion link and dual shifts without springs in the actuator enable faster, smoother actuation with significantly reduced vibration
  • Dust seal on the vacuum side of the bonnet flange that virtually eliminates particulate from entering the bellows
  • Mechanical locking so at the end of gate travel the valve locks into position
  • Welded bellows actuator seal
  • Bonnet flange bolts are designed with retainers to eliminate bolts from falling out upon disassembly

Options

  • Custom sizes available
  • Various o-ring compounds (Kalrez®, Chemraz®, etc.)

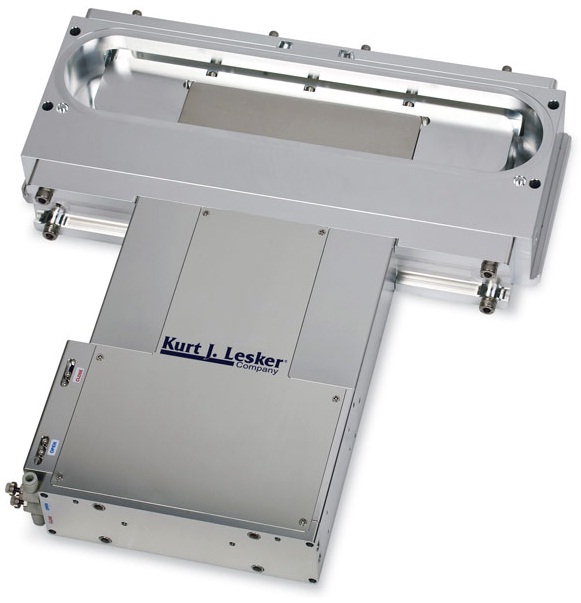

Lesker Rectangular Valve With Housing Cover
