Roll to Roll Device for Compact Rolling Machines upto 150 mm Width (Ar Glove Box Compatible) - MSK-2150-RD

Name: Roll to Roll Device for Compact Rolling Machines upto 150 mm Width (Ar Glove Box Compatible) - MSK-2150-RD
Brand: Premier Solutions Pte. Ltd

0.0/5 rating (0 votes)

Description

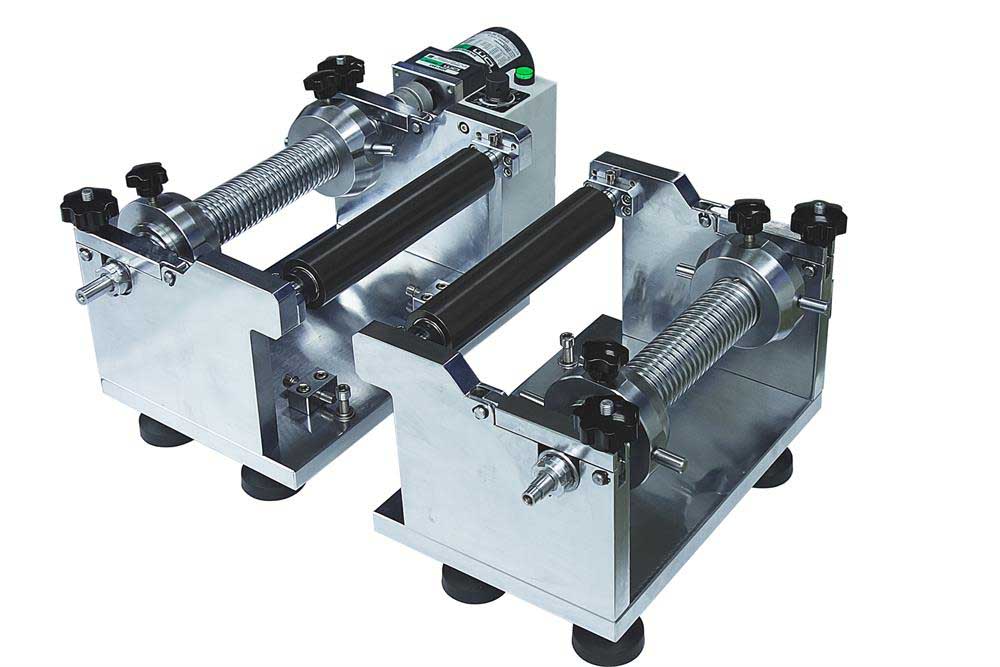

MSK-E2150-RD is an automatic Roll to Roll system designed for continuous handling of flexible substrate materials less than 150mm wide. It enables the automatic R2R film calendering on MTI tabletop calendering machines (MSK-HRP series). Tension adjustable torque motor for active reeling to maintain a constant tension force on the substrate.

SPECIFICATIONS:

Working Voltage	208 - 240 VAC, 50/60Hz, Single Phase 220V AC Power plug is not included (Please click here to order the plug) You may use 200W transformer to operate at 110V
Max. Power Consumption	100W
Front Panel & Tension Control	Infinite switch for various tension control 0~20N Tension adjustable torque motor for active reeling Friction resistant passive unreeling
Motor Type	The use of brushless motor ensures no sparking in the Ar gas environment
Reeling Width	< 150mm width for flexible substrate material
Traverse Speed	The film traverse speed is dependent on its calendering speed, normally <1.5 meters/min
Roller's O.D	3 inches
Reeling/Unreeling Roll Diameter	Max. 200mm
Sample Roll Traveling Route
Compliance	CE certified UL ready component to ensure pass UL and CSA certification at extra cost
Warranty	One-year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Application Notes	It is not allowed to use any MTI product in any hazardous location, especially prohibited from using in Class I envir onments (flammable gasses & vapor). This roll to roll device is compatible with MTI MSK-HRP series tabletop calendering machines
Operation Video
Optional part	< 150mm width Compatible Roll (Aluminum Foil or Copper Foil) can be found at our website.
Dimensions
Net Weight	50 kg
