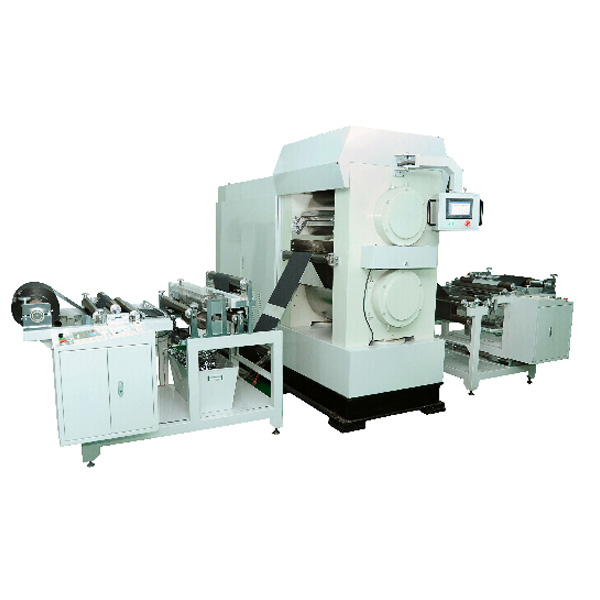

Roll to Roll Pressure Controlled Rolling Press ( 450 mm Width) for Battery Electrodes - MSK-DPC-B400

Working Voltage

• AC 380V 50 Hz Three Phase

Max. Power Consumption

• 12 KW

Rollers (one pair)

• Dimensions: 400mm (Dia.) x 450mm(W)
• Material: Hardening Tool Steel with HRC 65,
• Hardening layer thickness:  ~19 mm
• Effective Rolling Width: 100 -400 mm
• Max. Diameter of delivering and winding:  400 mm

• 0 - 2 mm adjustable
• Tolerance: 0.001 mm

• 0 - 20 Meter / Minute adjustable by Touch Screen Control Panel

Press Flatness

• Thickness Accuracy:   ± 0.0025mm
• Surface Roughness:   <  Ra 0.2

Pressure Control

• Pressure load: 1 - 20 Tons ( 2000KN) adjustable by Touch Screen Control Panel
• Real time pressure display with data saved function

Accessories Included

• Rolling Roller cleaning service built in
• Edge cutting device included
• Dust Removing device installed
• Roller installation and unload cart included

Utility and Environment

• Compressed air: 0.5~0.8 Mpa (Air compressor is not included)
• Environment Temperature:     25 ± 3℃
• Environment Humidity           0~90RH

Dimensions

Warranty

• One year limited warranty with lifetime support
• Rusting and damage due to improper storage condition or maintenance are not covered by warranty

Net Weight

• 10 Metric Ton

Articles

• Please refer to this instruction on how to calculate rolling pressure from roller gap (reference only)
• Analysis of geometric and electrochemical characteristics of lithium cobalt oxide electrode with different packing densities

Application Notes

• It is not allowed to use any MTI product in any hazardous location, especially prohibit from using in Class I environments (flammable gasses & vapor).
