Sealing Flange with Water Cool Jacket for 40mm / 42mm dia.Tube - EQ-FG-40WC

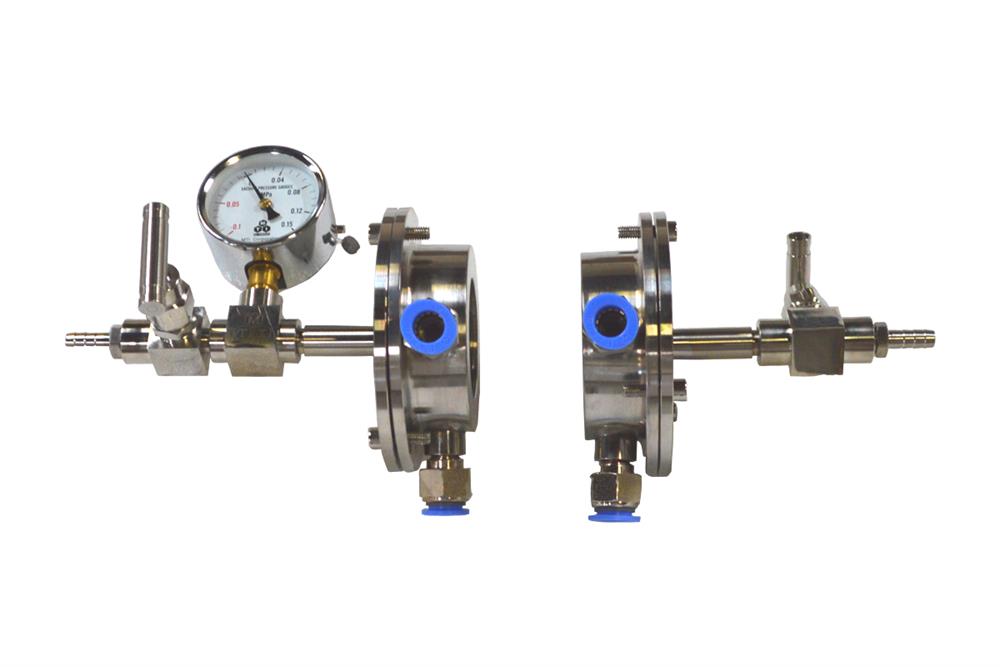

This is a pair of sealing flange with SS water cool tubing & valve for O.D 40mm / 42mm diameter processing tube. If you cannot use a ceramic block in two ends of the tube, you must use the water cool tubing to keep the flange cool (otherwise silicone o-ring may get damaged) SPECIFICATIONS

Features	Made of Stainless Steel with double high-temperature silicon O-rings on the flange.    Stainless steel needle valve with 1/4" pipe adaptor. The assembly kit will seal one end of a 40mm / 42mm diameter ceramic and quartz tube. 40mm for quartz tube and alumina tube 42 mm for 41 mm OD mullite  tube A vacuum meter is installed on one side of the flange. MTI recirculating water chiller is an ideal tool for supplying cooling water to this flange set, please click the picture below for more information.
Optional part	Please click here to order a digital vacuum gauge for precision vacuum control upto 10-4 torr  For CVD application, please choose anti-corrosive vacuum gauge ( click pic below left 2 ) You can choose the various end of fitting as options  ( click here to order separately ) You may click here  order a flowmeter to control gas flowing  You may order flange support to avoid tube turning ( picture below right)
Installation Video
Dimensions	(click to enlarge)
Warning	Must put a refractory tube block in front of the flange (see picture below) to avoid heat radiation melt silicone O-ring. You may order a ceramic block in related products. Please do not over-tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable, or corrosive gases with our flange assemblies. Please contact us with any concerns.
Optional Accessories	Click here to choose a flange for tube from 42mm to 11"                        Vacuum Pump & High Vacuum Station
