Sheet Film Coater w/ Vacuum Chuck ( 300Wx600L mm) & 250mm Doctor Blade - MSK-AFA-II-VC

0.0/5 rating (0 votes)

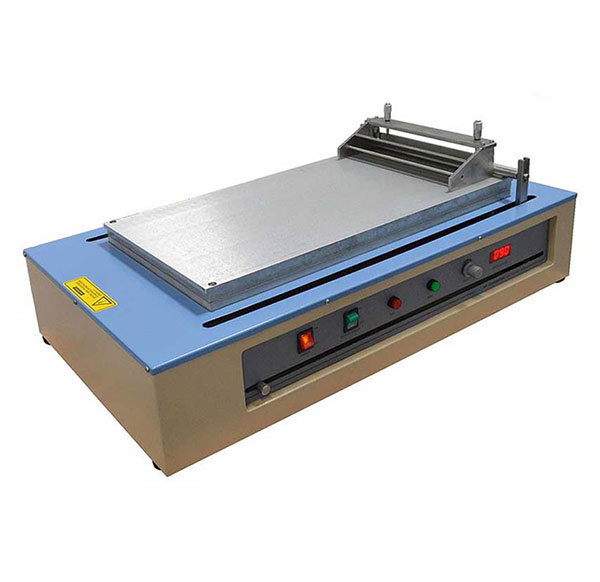

MSK-AFA-II-VC is a Large Automatic Film Coater with a Vacuum chuck ( 300 mm W x 600mm L) designed to produce films with consistent thickness by using thickness adjustable applicators. It has a unique driving system to produce a smooth coating on all types of materials. The vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when coating on the thin substrate and making uniform tape casting. One 250 mm width gap adjustable applicator is included. This machine can be used for research on SOFC and Li-Ion battery electrode coating.



Working Voltage
One UL/CSA listed 100-240VAC IN - 24VDC OUT power adapter is included.
Max. Power Consumption 100W
Traverse Speed
  • 5 - 100 mm/sec variable
  • Accuracy: 10mm/sec
Stroke Length 10 - 550 mm adjustable by using Adjustable Position Switch
Max. Coating Dimensions 250mm(W) x 550mm(L)
Vacuum chuck
  • Vacuum chuck made of Aluminum alloy with < 1 mm holes
  • Vacuum Chuck Dimensions: 600mm(L) x 300mm(W)
Vacuum Pump (Optional)
(Remove the oilless pump from standard pack Since 02/26/2016 )
Film Applicator
  • 250 mm width Micrometer Adjustable Film Applicator is included, with adjustable thickness from 0.01 - 5 mm
  • Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating
  • Note:  Thinnest film can be achieved is > 10 micron
Product Dimensions 805mm(L) 430mm(W) 223mm(H)
  • CE certified
  • NRTL / CSA certification is available upon request at the extra cost.
Warranty One year limited warranty with lifetime support
Operation Manual & Video
Application Notes
  • Pic.1 and 2 show coated cathode and anode for Li-Ion batteries. Please click here to see how to
  • It is recommended to operate the coater under a fume hood. (Click Pic.3 for detail.)
  • You need a vacuum mixer to  make uniform coatings (Click Pic.4 for detail.)
  • You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail.)
  • You may need a vacuum oven to dry the films and remove the binder after coating. (Click Pic.6 for detail.)
  • Rolling pressing is necessary to ensure good density and adhesion of electrode materials to the current collector substrate after coating. Please select a rolling press from here. (Click Pic.7 for detail.)
Pic.1                   Pic.2                      Pic.3               Pic.4                    Pic.5                   Pic.6                 Pic.7
Net Weight 30 kg (67 lbs)
Shipping Dimensions 48"(L) x 40"(W) x 37"(H)
Shipping Weight 255 lbs
