  6. SiC Heating Element for KSL-1400A4 muffle Furnace - EQ-KSL-1400A4-HEL

Categories

Heating Elements | Furnace Accessories

SiC Heating Element for KSL-1400A4 muffle Furnace - EQ-KSL-1400A4-HEL

0.0/5 rating (0 votes)

Description

Specifications:

  • Materials: SiC
  • Working Temperature: max. 1400oC, Continous working temperature 1300oC
  • Replaces Heating elements for  MTI KSL-1400A4 Furnace only ( each furnace has 10pcs such U type heating elements )

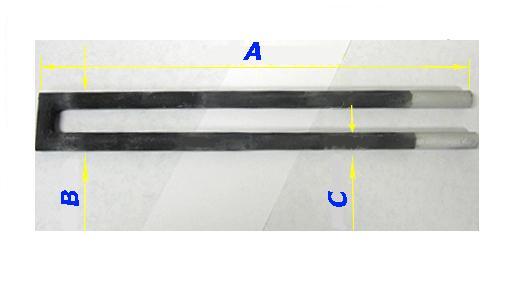

  • Dimension:A:500mm    B:42mm    C:12 mm
  • WARNING: The heating element is made of highly brittle material,  avoid applying stress during installation. No warranty will be provided for damage caused by improper installation. (Make sure the width of ceramic separator matches the heating element gap; a round file can be used to grate the ceramic separator)

Electric Properties of SiC Heating Elements

SiC heating element has a rather large specific resistance which changes with rise in temperature.  It has a resistance value of 600 ~ 1400 Ohm.mm 2 /m when the surface of its heat-generating part reaches 1050 oC while being heated in air.

The curve below illustrates the surface resistivity of SiC. Its values decline when temperature is below 1000 oC; rise when above 1000 oC.

Surface resistivity vs. Temperature
