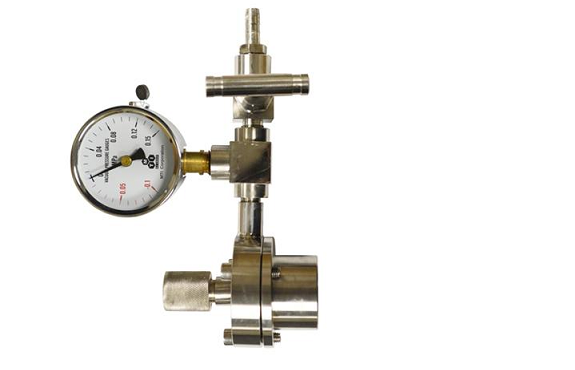

Single Side 1" Tube Sealing Assembly with Valve and 1/4" TC Insert - EQ-FL-25F-TC

0.0/5 rating (0 votes)

Description

This is a single end  sealing flange with 1/4" thermal couple insert or any 1/4" dia. tube  for 1" tube furnace

SPECIFICATIONS

Features
  • Made of Stainless Steel with  high-temperature silicone O-rings (300°C Max)
  • Sealing tube by tightening screws on the flange without any welding and glue.
  • 1/4'' diameter stainless steel gas inlet/outlet fitting for 1/4" hose tube .
  • 1/4 tube insert is built one flange to insert a thermal couple for in-situ temperature monitor
  • Click picture left to order 1/4" diameter thermal couple at extra cost.

Vacuum Level 10E-5 torr by molecular pump and 10E-2 torr by mechanical pump
Optional Parts
Installation Video
Warning
  • Must put a refractory tube block between the flange and the sample to avoid melting the silicone O-ring by heat radiation.  Please order a ceramic block in related products.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.

Related Applications Click here to choose flange for tube from 42mm to 11"                        Vacuum Pump & High Vacuum Station
Stainless Steel Sealing Flange Assembly for 1"-11" Processing Tubes                                              Vacuum pump and high vacuum station
