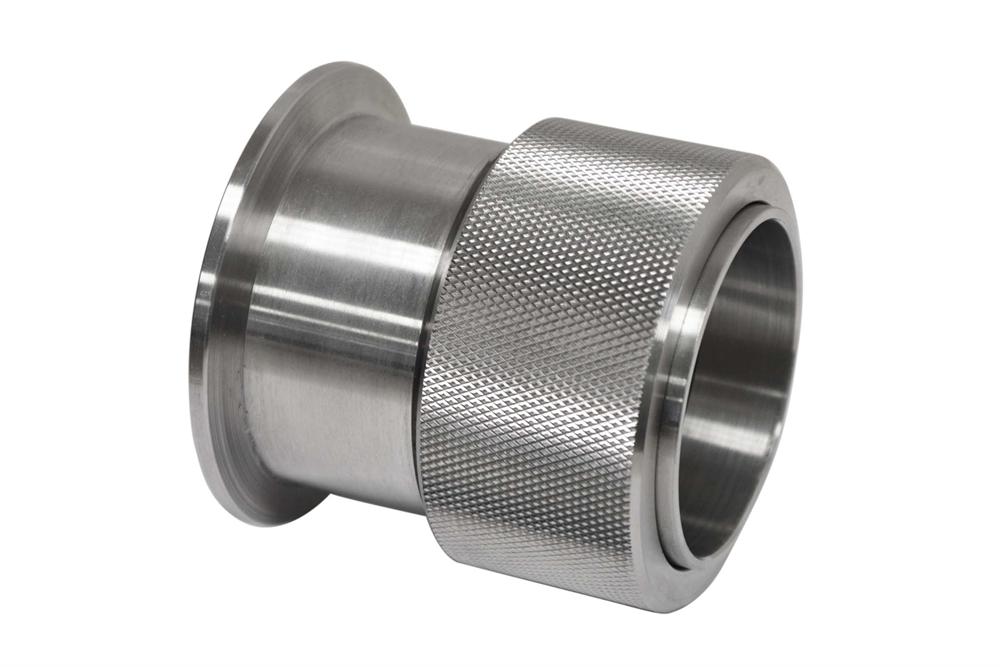

Single-side Quick Disconnect Flange for 50mm O.D. tube with Optional Accessories - EQ-FL-50KF50

This is a one-side quick disconnect flange set for rapid access into 2" O.D vacuum chamber through flanged port. Quick-Disconnect flanges are a fast and convenient method for coupling and uncoupling metal and glass tubing.

SPECIFICATIONS

Type (Please select in options bar)	QuickDisconnect Flange	QuickDisconnect Flange with KF50-40 Adaptor	QuickDisconnect Flange with  right-angle valve
Item Number	EQ-FL-50KF50-QD	EQ-FL-50KF50-QD40A	EQ-FL-50KF50-QD40V
Package included	One KF50 quick-disconnect flange set	One KF50 quick disconnect flange set  One KF50 clamp set   One KF50 to KF40 adaptor	One KF50 quick-disconnect flange set  One KF50 clamp set   One KF40 clamp set  One KF50 to KF40 adaptor  One KF40 to KF40 right-angle valve
Structure	Click to enlarge	Click to enlarge	Click to enlarge
Dimensions	2.95" Dia. × 2-1/2”L	4-1/2"Dia × 4-3/8”L	10-1/2”L × 4-1/2”W × 3-1/2”H
Net Weight	1.1 lb	1.85 lbs	4.75 lbs
Features	Vacuum level: 10E-5 torr by molecular pump and 10E-2 torr by a mechanical pump Temperature Range: -20ºC to 150ºC Made of 304ss Fittings Leak Test: 2x10-10 cc/sec He
Warranty	One year is limited with lifetime support, Consumable parts like silicone O-rings are not covered by the warranty.
Optional	You may order a single end flange with the gas inlet port and thermal couple insert  ( click picture below left to order ) Due to the weight of the QuickDisconnect flange with the Right-Angle valve, we recommend the following support: Adjustable Tube Support (320 - 510mm H) for KF25 Flanges - EQ-FLS-KF25 You may need to order a KF-50 - KF-40 adaptor to connect to the vacuum pump MTI supplied Warning:   Must put thermal block inside the tube during heating to avoid o ring on the flange damaged, which not be covered by the warranty             ( click pic to order )
Installation Video
