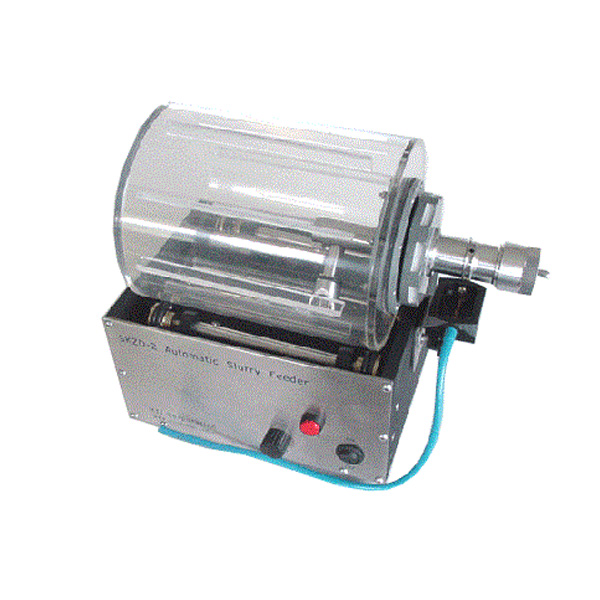

SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - EQ-SKZD-2

SKZD-2 slurry feeder is designed for both Unipol-802 and Unipol 1502 polishing machines. Also, it can be used for any small lapping and polishing machine to achieve abrasive and polishing slurry feeding automatically.

SPECIFICATIONS

Features	Feeding rate is adjustable via a precision valve and rotating speed The plastic rolling container can take the volume of slurry up to 1.0 Gallon (~3.8L) for long time polishing  Can feed any abrasive or polishing slurry with particle size < 40 microns
Working Voltage	AC 110V or AC 208~240V single-phase selectable
Rotation Speed	8~20 RPM
Dimensions of the control box and rolling container together	L300mm × D200mm × H260mm(Details please refer to the first picture below)
Dimensions of the control box	L300mm × D200mm × H120mm(Details please refer to the first picture below)
Dimensions of the rolling container	Ø165mm × L190mm (Details please refer to the second picture below)
Dimensions of shipment	18" x 14" x 15"
Weight of shipment	21 lbs
Product dimensions
Demo Video
Application Notes	Mixing abrasive ( < 40 microns ) with D.I. water or lubricant, and rotating 10 minutes before opening the valve to feed slurry at the fastest speed. If your abrasive powder size > 40 microns,   we will enlarge feeding port diameter upon request A spare 1 gallon rolling slurry container is available at $495/ea
