Small 10 mm I.D. Dry Pellet Pressing Die For Hi-throughput Pressing - EQ-Die-10S

0.0/5 rating (0 votes)

Description

EQ-Die-10S is a small size pressing die with 10 mm I.D. for high-throughput pressing by a 100T hydraulic press machine, which can press 32 pcs pellet at one time. SPECIFICATIONS:
Pressing die installation schematic

  • To avoid the risk of accidents and damage to the Pressing Die, please read these instructions carefully before installation and before using it for the first time.
    1. Must Read the manual especially the die installation schematic before the operation.
    2. The operator must wear protective goggles.
    3. Must have Hydraulic Pellet Press equipped with the Protection Cover
Dimension
Material Made by High-stretched Carbon Steel
Hardness HRC 60-62
Roughness Average (Ra) 0.08 μm
Maximum Load 5 metric Ton (at room temperature)
630 MPa
Weight 0.4 Lbs

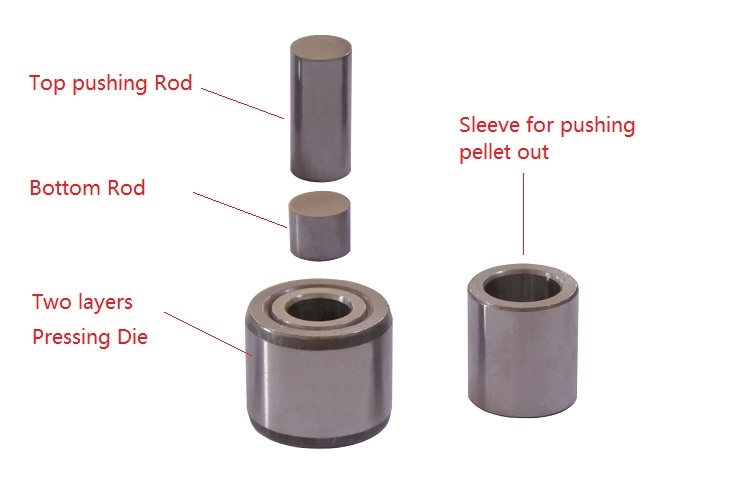

The whole set  pressing die includes
  • One 10mm  I.D. core die
  • One steel sleeve for the core-die protection
  • Two pushing rods highly polished and perfectly fitted into the die.
Cautions
  • WARNING:
    • DO NOT press flammable, corrosive, or explosive materials
    • The operator must wear a protection goggle.
  • Attention:
    • Use ethanol to clean the pressing die before and after use every time
    • Use anti-rust oil after the operation and store it in a dry place to avoid rusting.
    • NO pressing powder with particle size LESS THAN 30 micron should be used. Small particles may slip into the gap between the pushing rod and steel sleeve and cause damages to the sleeve during the compression.
    • Ball mill or ground the powder to the size of 32~75 microns powder before pressing.
    • You may consider using EQ-BNMR for easy mold release. Please click the picture below to order.
    • .
Instruction Video
Steps to make sample pellet
  • Mixing and grinding chemical powder by agate mortar or Ball Mill
  • Calcine mixed the powder in a high temp furnace under suitable temperature
  • Crushing and Grinding calcined powder again by mortar or ball mill
  • Put calcined powder into the die
  • Pressing sample by a pressing machine under suitable pressure
  • Take out pellet sample from die
  • Sintering the pellet under suitable temperature in Oven
  • Then, a new material sample is formed!
Warranty
  • Pressing Dies are consumable products and are not covered by MTI's warranty.
