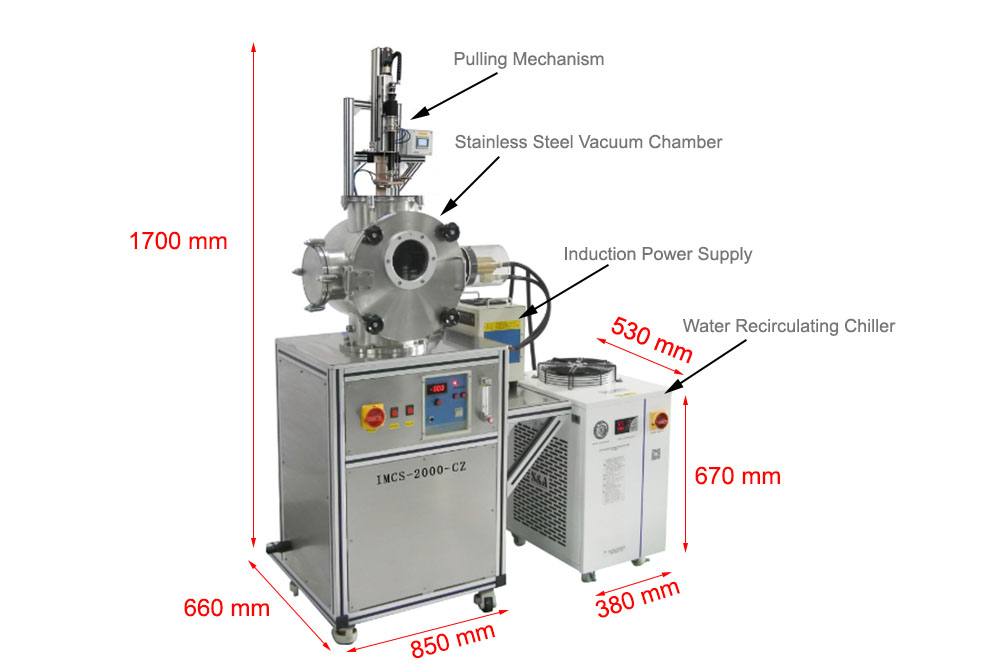

Small CZ Crystal Grower System for 1" Single Crystals up to 2100C - IMCS-2000-CZ

0.0/5 rating (0 votes)

Description

IMCS-2000-CZ is a small-scale Czochralski (CZ) Crystal Growth Furnace for metals and oxides with diameter < 1". It has been proven excellent for pulling various crystals with up to 2100 oC, including Al2O3, GGG, YAG, LaAlO3, Si, Ge, and etc.  MTI provides technical training on installing and operating before shipping, also provides online video technical support worldwide.
SPECIFICATIONS:
Power
  • Input: 380VAC, 3 phase, 50A(max induction power)
  • Output: 25kW(max)
Heating and Temperature
  • Max: 2100°C (3812°F) with induction heating
Vacuum Chamber
  • Material: SS304
  • Size: Φ320×320mm, equipped with a quartz window (Φ120mm) to observe material melting, crystal seeding, and growth.
  • There is one KF25 port and one KF40 vacuum port connected to the back of the chamber. There is also one LF160 port on the right side of the chamber for molecular pump system connecting.
Pulling Mechanism
  • The pulling mechanism is driven by a precision servo motor/n
  • Pulling Speed: 0.1-10 mm/hr
  • Pulling rod rotation speed: 0.1-23 rpm
  • Travel Distance: 0-300mm
  • The pulling mechanism can move as quickly as 35mm/min

Vacuum atmosphere

  • The vacuum chamber can be evacuated and filled with inert gases.
  • Equipped with a digital anti-corrosion vacuum gauge (oiled ceramic coating on the sensor), the measuring range is 10 ^-5 ~ 1000torr
  • Vacuum level:    5x 10-5 torr (turbopump)  or 5 × 10-2 Torr (mechanical pump)
    Vacuum pump ( optional):  Please click the picture below to choose a vacuum pump at the extra cost.
  •

Induction Heating

  • 25KW (30-80KHz) induction power supply with Time Controller and Power Controller
  • Induction coil: φ90mm × 80mmH
  • Water cooling: 116L/min circulating water chiller is included
  • Please note, the standard configuration does not contain a temperature control system, optional temperature control system, to control the melting temperature.
  • The crucible and thermal insulation accessories are not included.    We can provide them based on your application.
