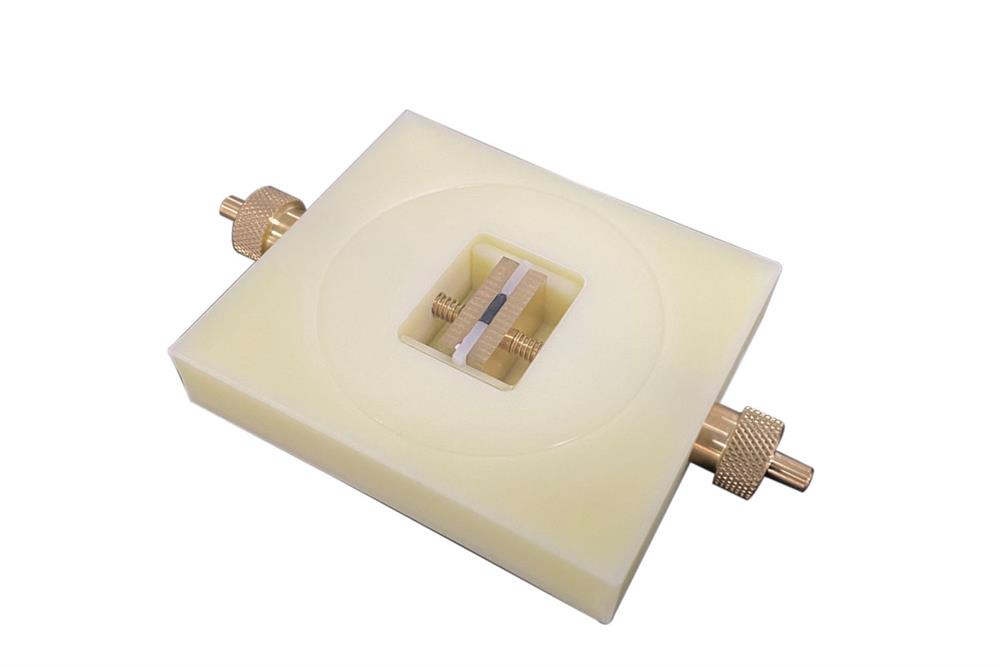

Small Split Cell with Quartz Window for In-Situ Optical Microscope Analysis of SSB Interface - EQ-STC-SSI

• The cell case is made of Nylon
• Sealed by the silicone O-rings which is liquid-tight and air-tight
• Two pressing plates are made of stainless steel 304 with the gold coating
• Two brass pressing screws for Cathode ad Anode
• Max Force:  1500N
• Note:  May use a digital torque wrench to apply force accurately.
•

• The window is made of optical grade quartz glass
• Diameter: 50.8 mm
• Thickness: 0.5 mm
• Most microscope lenses are compatible
• Only clean the glass with lens wipes.
• Note: Glass is fragile and can be attached to the case with adhesive. Please handle with extreme care. In case of fracture or debonding, please click the link to order replacement glasses SSI-WD

• Cell Structure: Cathode - Solid-state electrolyte - Anode
• Standard fixture for solid-state electrolyte: 6 mm × 6 mm × 1.5 mm
• Optional fixtures up to 12 × 12 × 1.5 mm
•

• Test piece is compressed and held in place by two compression springs.
• Material: SUS 304
• Spring Rate / Stiffness: 0.588 N/mm (60 g/mm)
• Dimensions when free: 4 mm OD × 3.2 mm ID × 16 mm L
• Length under maximum compression: 4.4 mm
• Please contact MTI to order replacement springs.

• Assembly: 105 mm L × 60 mm W × 40mm H
•   (Click the picture for detail)

• Battery Test Cells are considered consumables and are not covered by warranty

• This test cell is compatible with MTI's microscope EQ-MM500T-USB.
•
• Microscopy pictures showing Steel-Lithium-Steel interface observation at various magnifications
• > X400 focus becomes difficult due to glass window.

   x50           x100            x200           X400

(Optical Magnification = objective lens × eye lens）
