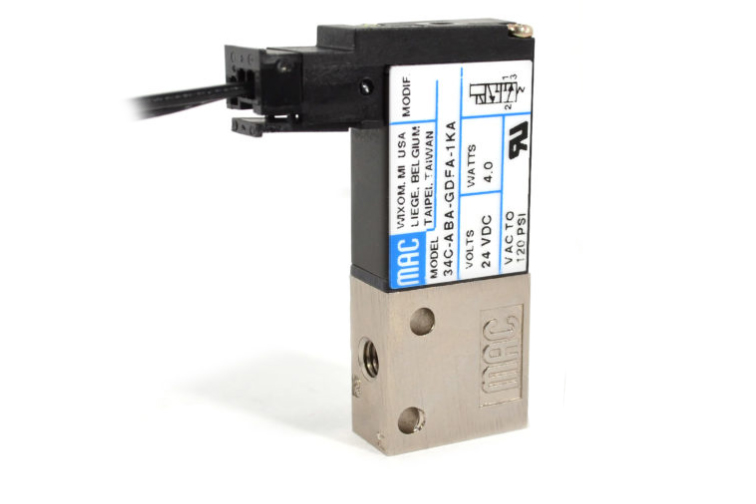

Solenoid Valve for Atomic Layer Deposition - EQ-SValve-34C-ABA-GDFA-1BA

0.0/5 rating (0 votes)



Solenoid valves are the most frequently used control device in gas flowing system. It has the function of shut off, release, dose, distribute or mix gas. It is very cost-effective to work with MTI tube furnace, pressure gauge and glove box to achieve automatic pressure control. This model operates at 24V DC with 18" wire length, non-locking recessed operator, and flying leads.
Fluid:                        Compressed air, vacuum, inert gases
Pressure Range:     Vacuum to 120 PSI
Lubrication:             Not required; if used, select a medium aniline point lubricant (between 180°F and 210°F)
Working Temp:        0°F to 120°F (-18°C to +50C°)
Voltage Range :       -15% to +10% of nominal voltage
Power:                       24VDC, 4 W - 2.5 W - 1.8 W
Flow:                         4 W : (0.12 Cv) - 2.5 W : (0.10 Cv) - 1.8 W : (0.06 Cv)
Coil:                          Class A wire (#22 AWG x 18), continuous duty
Response Times:     Energize: 3.4 ms, De-energize: 1.5 ms
