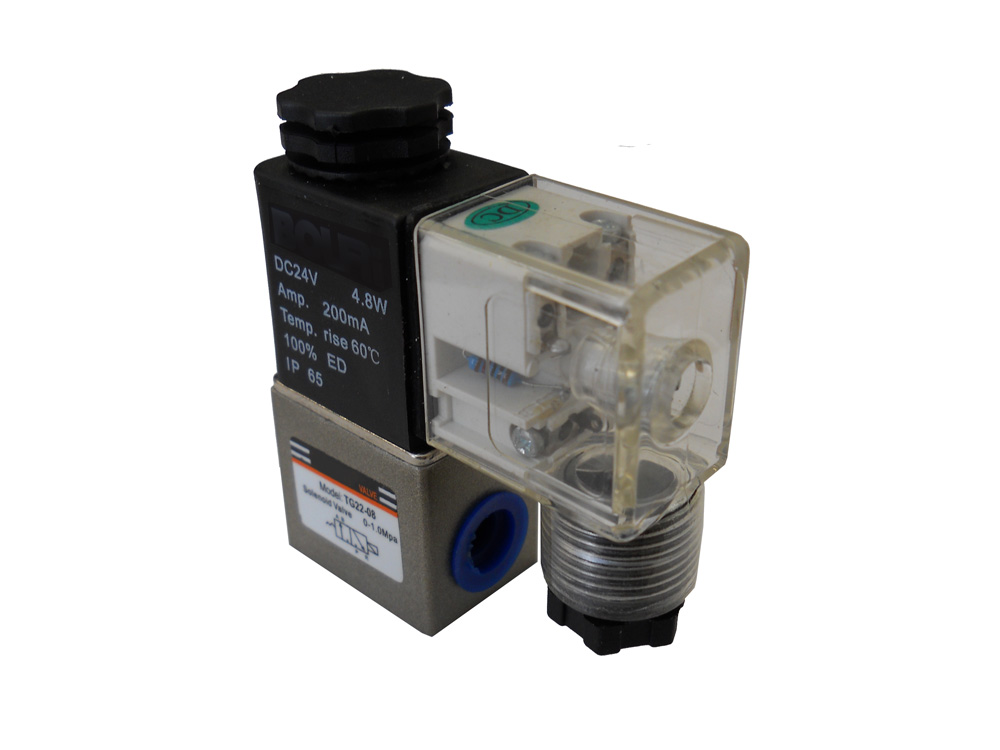

Solenoid Valve for Automatic Gas Control System, 24VDC, EQ-SN-Valve

 Solenoid valves are the most frequently used control device in gas flowing system. It has the function of shut off, release, dose, distribute or mix gas.  It is very cost effective to work with MTI tube furnace, pressure gauge and glove box to achieve automatic pressure control. Structure （click to enlarge)
Specification
Fluid:                          Clean Gas
Pressure Range:    0.15-0.8Mpa (Never go over 1.05Mpa)
Tread Type:            1/4" BSPP
Working Temp:      -5-50C
Voltage Range :       -15%-15%
Power:                       24VDC，  2.5W
Max. Frequency:     5 times/second
Excitation:                 0.05S
Durability:                 10 million times
Net Weight:               0.3 Lb
Dimension:               66mmHx59mmLx22mmW
