Split-able Pouch Cell with Quartz Window for In-situ Analysis of Battery - EQ-SPCW

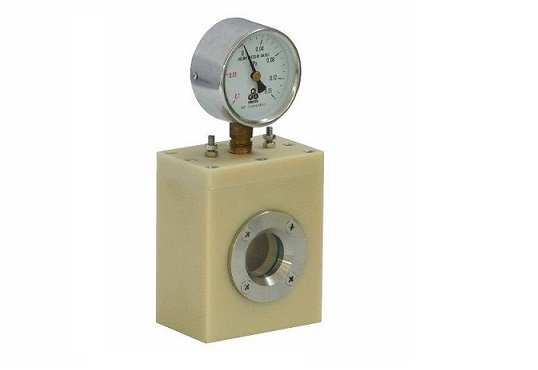

EQ-SPCW is splittable pouch cells with a double quartz window for X-Ray or Raman in-situ analysis. The split pouch cell is made of Nylon or Peek. Its detachable design allows you to test the pouch cell behavior as well as structural changes of electrode easily, quickly and cost-effectively. MTI has granted the patent 2016205320316 for Split-able Pouch Cell with Quartz Window - EQ-SPCW since June 2016.

Specifications
Design Features	30 mm diameter quartz window installed on two sides of pouch cell for transparency measurement Pouch cell is sealed by PTFE O-ring without liquid and gas leaking One pressure gauge installed on top to monitor pressure.  You may remove the gauge and use 1/4 female port to inject electrolyte into the pouch cell Pouch cell is easy assembling by only four cap mounting screws It is easy to separate after test for microstructure analysis Space saving, compact design allows you put it into the glove box
Material (Please select at options bar)	Nylon or PEEK (Poly Ether Ether Ketone) selectable from the product options bar Body: Electrolyte corrosive-proof Nylon which can sustain with temperature up to 80ºC and O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings Body: PEEK (Poly Ether Ether Ketone), which is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures and O-ring: Sealed by electrolyte corrosive-proof FKM O-rings
Cell Dimension
Electrode Sheet dimension	Standard size:   Cathode Die: 57mm (L) x 44mm (W). with 10mm (L) x 10mm (W) protrude current collector Anode Die: 58mm (L) x 45mm (W). with 10mm (L)  protrude current collector  Customized size pouch cell is available upon request
Application Note	In order to make metal air pouch cell, you can drill holes in the case. We can help you do that at an extra cost You may use MTI die cutter to prepare electrode via layer by layer or make winding type pouch cell electrode (click picture below to see the machine) You may need an ultrasonic welder to welding electrode tape to connect to the split cell                                                                               Die cutter            Ultrasonic Welder               Winding Machine           Pre-coated Electrodes              Other split cells
