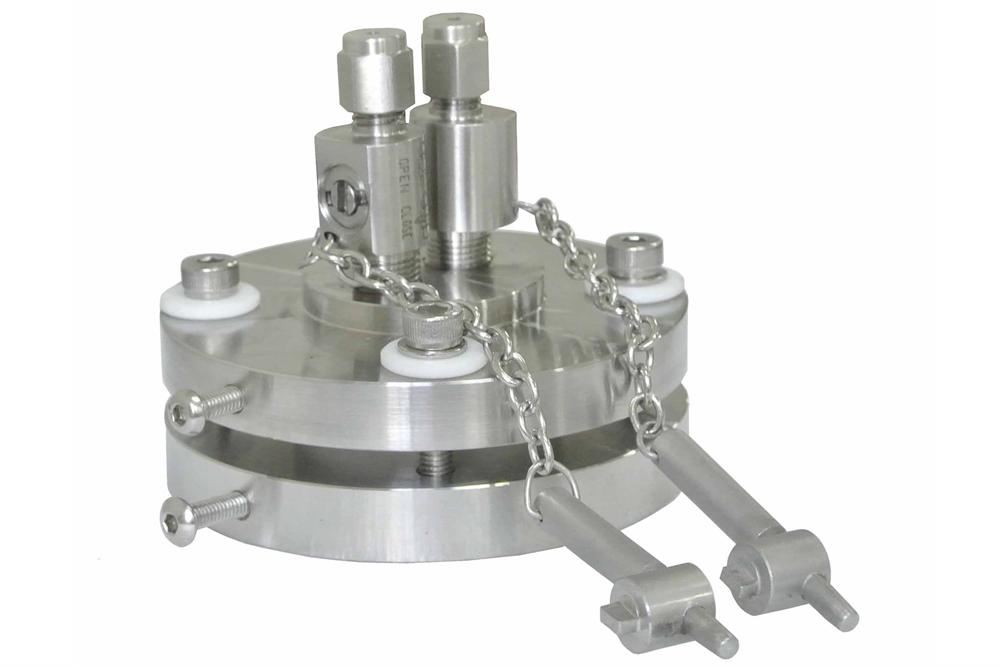

Split Test Cell for Lithium Air Battery Research: Optional Au Coating - EQ-STC-LI-AIR

The EQ-STC-LI-AIR is Split Test Cell for Lithium-Air Battery Research. You can control airflow pressure and test various anode and cathode materials at easy
Note: Customized (Au coated) test cells are non-returnable and non-exchangeable.
SPECIFICATIONS:

Structure	SS304 steel Structure with internal Silver-Clad surface treatment ensures high electrical conductivity and good corrosion protection Two electrodes design Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings Compact design fits in any benchtop glove boxes The grooved area on the lower split to the fixed position of the anode electrode
Cell Thickness	1~3mm (cathode+separator+anode)
Bottom Recess Area	16mm Dia. (The recessed area can accommodate the electrodes with size up to 16mm Dia.)
Max. Working Temperature	200°C
Valves & Fittings	Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet
Warranty	One Year limited manufacturer warranty with lifetime support
Dimensions	Φ80×62mm
Optional	Anti-corrosive Au coating on the cell internal and inserts is an option. $696 surcharge will apply. Please click here to order your own gold plating kit. Please order spare 1/16 Fittings.
Demo Video
Application Notes	Assembly of Li-air Batteries, please click the picture below to learn. Consumable materials are available in the "Related Products" section. For sodium air batteries of using the Lithium-Air Battery cell in a pure oxygen environment, the two valves are not greased.(do not need to worry about using greased valves with pure oxygen can result in combustion). Warning: The included 1/16" O.D. Stainless Steel Gas Inlet Tube must be cut by a Dremel or the cutting pliers below (click picture for details). Otherwise, the hole will be blocked and gas will not flow to the split test cell.                                - Video
