Cylinder Cases & Related Components | Cases of Coin/Cylinder / Pouch Cell

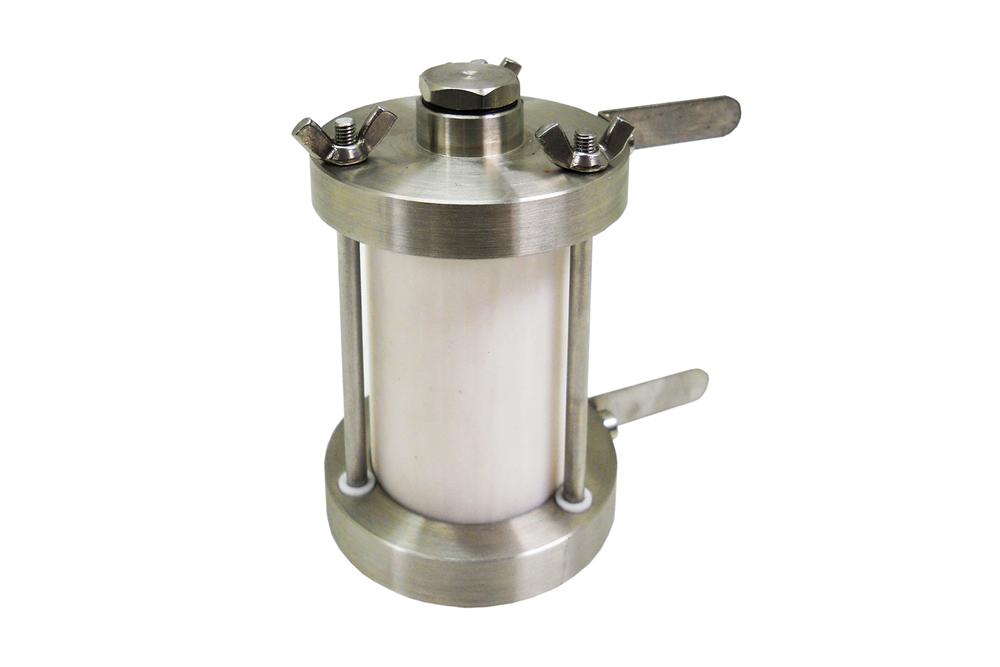

Split Type Cell for 18650 Cylindrical Battery with Optional PTFE/Quartz Liner - EQ-SC-18650

0.0/5 rating (0 votes)

Description

Note: Customized (Au coated) test cells are non-returnable and non-exchangeable.
MTI has granted the patent 2016205320104 for the Split Type Cells for the Cylindrical Batteries with PTFE/Quartz Liner since June 2016.

Model	EQ-SC-18650-TF	EQ-SC-18650-QZ
Dimensions (Dia. x Height)	I.D. of PTFE Body (liner): 18mm Height of PTFE Body: 65mm	I.D. of Quartz Body (liner): 19mm Height of PTFE Body: 65mm
Material	Caps: Full Stainless steel 304 end caps Body liner: Electrolyte corrosion-proof PTFE liner can withstand temperature up to 250ºC O-ring: Sealed by electrolyte corrosion-proof PTFE O-rings	Caps: Full Stainless steel 304 end caps Body liner: Transparent quartz body allows you to perform In-situ Raman and Infrared Spectroscopy O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings
Nylon Sleeve	A nylon protective sleeve is included for the Quartz Liner version only
Design	Easy assembling with only four cap mounting screws Easy to separate for cleaning after the test Space-saving, compact design allows you put it into the glove box Click the images below for the detailed illustration of these cell components
Option	Anti-corrosive Au coating on the top & bottom stainless steel caps is an option Please click here to order your own gold plating kit

Application

How to make Split Cylindrical Cell
http://www.mtixtl.com/images/products/thumb/5.JPG" alt="" style="border: 0px;" title="Click to enlarge" />http://www.mtixtl.com/images/products/thumb/3_1.6.jpg" alt="" style="border: 0px;" title="Click to enlarge" />http://www.mtixtl.com/images/products/thumb/4_1.5.jpg" alt="" style="border: 0px;" title="Click to enlarge" />http://www.mtixtl.com/images/products/thumb/7.JPG" alt="" style="border: 0px;" title="Click to enlarge" />http://www.mtixtl.com/images/products/thumb/DSCN8890_1.1.jpg" alt="" style="border: 0px;" title="Click to enlarge" />http://www.mtixtl.com/images/products/thumb/10.JPG" alt="" style="border: 0px;" title="Click to enlarge" />
http://www.mtixtl.com/images/products/thumb/11.JPG" alt="" style="border: 0px;" title="Click to enlarge" />http://www.mtixtl.com/images/products/thumb/13.JPG" alt="" style="border: 0px;" title="Click to enlarge" />http://www.mtixtl.com/images/products/thumb/14.JPG" alt="" style="border: 0px;" title="Click to enlarge" />http://www.mtixtl.com/images/products/thumb/DSCN8893_1.1.jpg" alt="" style="border: 0px;" title="Click to enlarge" />http://www.mtixtl.com/images/products/thumb/DSCN8897_1.jpg" alt="" style="border: 0px;" title="Click to enlarge" />http://www.mtixtl.com/images/products/thumb/18.JPG" alt="" style="border: 0px;" title="Click to enlarge" />
Please click to watch a video explanation of the split test cell installation.
