Split Type Cell for 18650 Cylindrical Battery with Optional PTFE/Quartz Liner - EQ-SC-18650

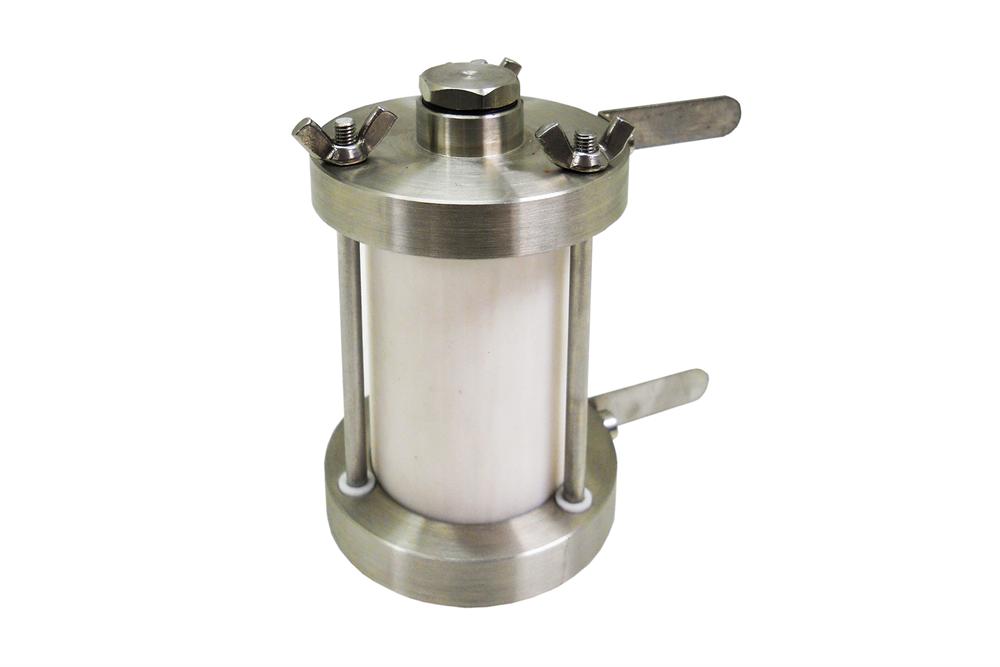

EQ-SC-18650 Split Type Test Cell is designed for testing 18650 batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrodes easily and quickly. Optional quartz case will allow you to do in-situ Raman, Infrared, or X-ray analysis.
Note: Customized (Au coated) test cells are non-returnable and non-exchangeable.
MTI has granted the patent 2016205320104 for the Split Type Cells for the Cylindrical Batteries with PTFE/Quartz Liner since June 2016.

Model	EQ-SC-18650-TF	EQ-SC-18650-QZ
Dimensions (Dia. x Height)	I.D. of PTFE Body (liner): 18mm Height of PTFE Body: 65mm	I.D. of Quartz Body (liner): 19mm                      Height of PTFE Body: 65mm
Material	Caps: Full Stainless steel 304 end caps Body liner: Electrolyte corrosion-proof PTFE liner can withstand temperature up to 250ºC O-ring: Sealed by electrolyte corrosion-proof PTFE O-rings	Caps: Full Stainless steel 304 end caps Body liner: Transparent quartz body allows you to perform In-situ Raman and Infrared Spectroscopy O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings
Nylon Sleeve	A nylon protective sleeve is included for the Quartz Liner version only
Design	Easy assembling with only four cap mounting screws Easy to separate for cleaning after the test  Space-saving, compact design allows you put it into the glove box Click the images below for the detailed illustration of these cell components
Option	Anti-corrosive Au coating on the top & bottom stainless steel caps is an option Please click here to order your own gold plating kit

Application

How to make Split Cylindrical Cell     Please click to watch a video explanation of the split test cell installation.
