Table-top Programmable Planetary Ball Mill with Four SS Milling Jars (4x100ml) - MSK-SFM-1S

0.0/5 rating (0 votes)

Description

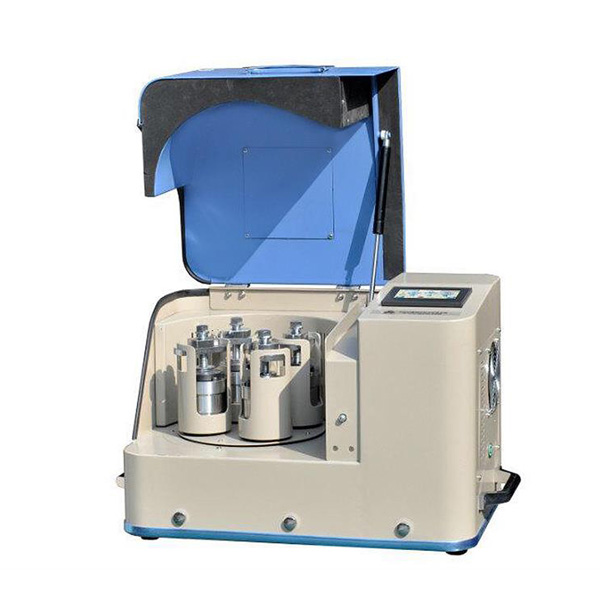

MSK-SFM-1S is a compact planetary ball mill designed to be operated on the table. 4 grinding stations with 100ml SS milling jars allow you to prepare up to 4 different materials (alloys, ceramics, chemical products, polymer composites, metal oxides, minerals...) in an effective way. Such a tool has been extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc. The optional multi-cavity jars is an ideal solution whenever high throughput material grinding/mixing is needed.



SPECIFICATIONS

Features
  • Table-top compact design with 4 Grinding Stations.
  • Large touch screen controller allows easy programming for multi-steps speed-up/down milling/grinding, rotating direction, timing control and cycling
  • Efficient grinding benefits from the high centrifugal force and pulverization energy
  • Suitable for mechanical alloying, mixing, homogenizing, pulverizing
  • Minimum output granularity can be as small as 0.1 um

Working Voltage
Max. Power Consumption 550W
Rotary Speed & Centrifugal acceleration: Speed adjustable by tuning the frequency output to the AC motor (principle)
  • Revolution: 0~400 RPM,                      Centrifugal acceleration:  14 g max.
  • Mixing tank self-rotation: 0~800 RPM, Centrifugal acceleration:   20 g max。
  • Total Centrifugal acceleration:  34 g  max
Speed Ratio Revolution:Self-rotation = 1:2
Touch Screen Control
  • Digital display and inputs for speed and time
  • Up to 10 recipes can be stored
  • Max. 5 segments speed control per recipe, up to 10 Cycles
  • Max. time for each segment is 99 hours 59 minutes 59 seconds
  • Rotation direction selectable, clockwise-anticlockwise
Material Feed Size Crispy materials< 10mm (Others<3mm)
Material Output Size
  • Wet Milling < 1um average
  • Dry milling < 20um average
  • Note: The output granularity is dependent on the material physical properties such as size, milling media and processing time. Minimum granularity can be as small as 0.1 um according to the customer's feedback.
Milling Jars

  • 4 sets of 100ml SS Jar with o-ring sealing are included
  • 4 sets of SS milling ball combo are included. If extra SS balls are needed pls click the pic in below to order.
  • High throughput processing is feasible thanks to the 4-cavity SS jar. 16 different materials can be processed at the same time with 4 jars. Please click the bottom left image to see the details.
  • SS vacuum jars, WC jars, and alumina jars are available ( Pic.5)

100ml SS Jar (included)

SS Milling Balls( Included)

4 cavity SS jar

V
ac. Jar (Pic. 5)

100ml WC Jar

100ml Alumina jar
Noise Level 55~70 decibel
Holding Fixtures
  • Four sets of holding fixtures are included.
  • Easy to tight for max. jar securing. Can hold jars with height up to 80mm
  Warranty
  • One-year limited warranty with lifetime support
  • Consumable parts, such as milling jar and balls are not covered by the warranty
  Compliance
  • CE Certified
  • NRTL or CSA certification is available at extra cost
  Production Dimensions & Weight

  • With lid closed: 661mm(L) x 417.5mm(W) x 396mm(H)
  • With lid opened: 661mm(L) x 422mm(W) x 771mm(H)
  • 70KG
  Operation Video         Operation Video      Holding Fixture Video
   Application Notes

  • SS304 mixing jar is suitable for grinding various metal materials
  • For milling the oxide material, please choose alumina / Nylon jars and zirconia media. DO NOT USE stainless steel balls in Alumina jars.
  • Must place 4 jars or 2 in symmetrical with similar weight in the ball mill to keep balance during rotation, If using one jar, you must put another jar with the same weight in a symmetrical position.  Otherwise, unbalance rotation, especially one jar, may damage the machine.
  • Please consider our SYU-3 Ultrasonic Filtration System for filtering the product
  • Please click underline to learn Centrifugal Force calculation.
  • To use the ball mill in the glovebox with Ar gas, you may consider ordering a 24VDC motor driving ball mill with separated control unit as the picture left
Shipping Dimensions  40"(L) x 30"(W) x 35"(H)
Shipping Weight  250 lbs
