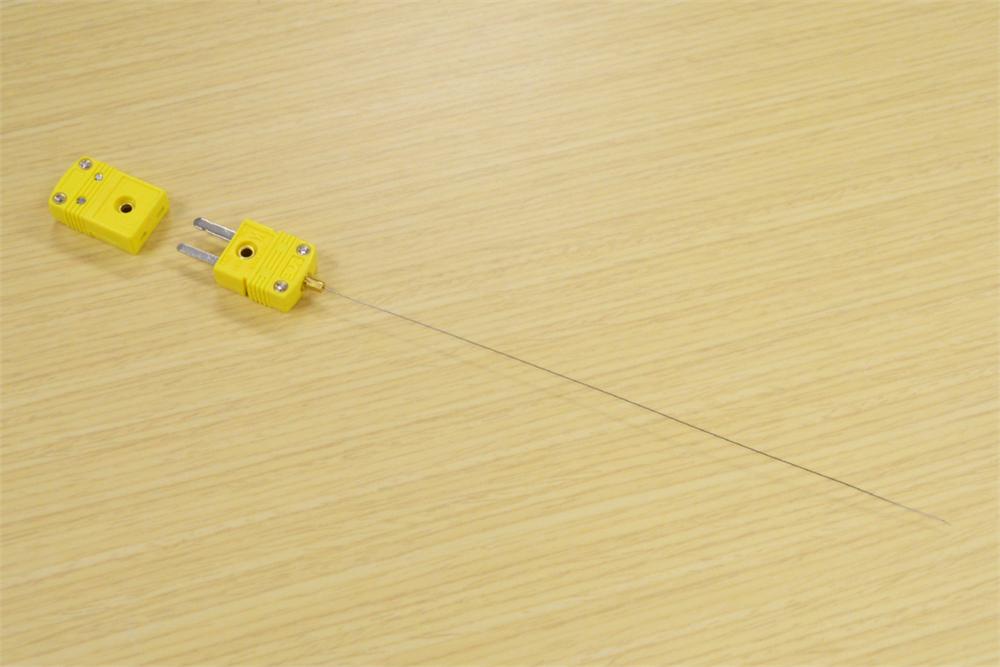

Thermocouple: K type 0.032" (0.8mm) OD x 6" L with Male Plug for Calibration - EQ-TC-K-Cali-6S-1mm-LD

0.0/5 rating (0 votes)

Features	Super Accurate, Super Stable, Super Value For Use with Temperatures Up to 1200 ^oC (2192 ^o F) Excellent Long Term Stability at High Temperature Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance Excellent Oxidation, Carburization and Chlorination Resistance Made with materials of Special Limits of Error. Perfect for calibrating MTI tube furnaces using a precision temperature calibrator
Length	6"
Diameter of sheath	0.32" ( 0.81 mm )diameter
Dimension
Positive Material	Ni-Cr
Negative Material	Ni-Al
Highest Temperature	1200 ^oC
Lowest Temperature	-200 ^oC
Application Note	If necessary, please check out K type thermocouple extension wire with mini male plug. There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K type thermocouple before use. Wrong polarity may cause temperature measuring error. It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
