Vacuum Sealing Assembly for 50mm Tube w/ KF-25 Port & 1/4" Feedthrough - EQ-FL-50KF25-FT (D/M)

This is a pair of smart sealing assembly for 2" vacuum tube furnace to seal both ends of  50 +/- 1.0  mm tube without any welding and gluing.

SPECIFICATIONS

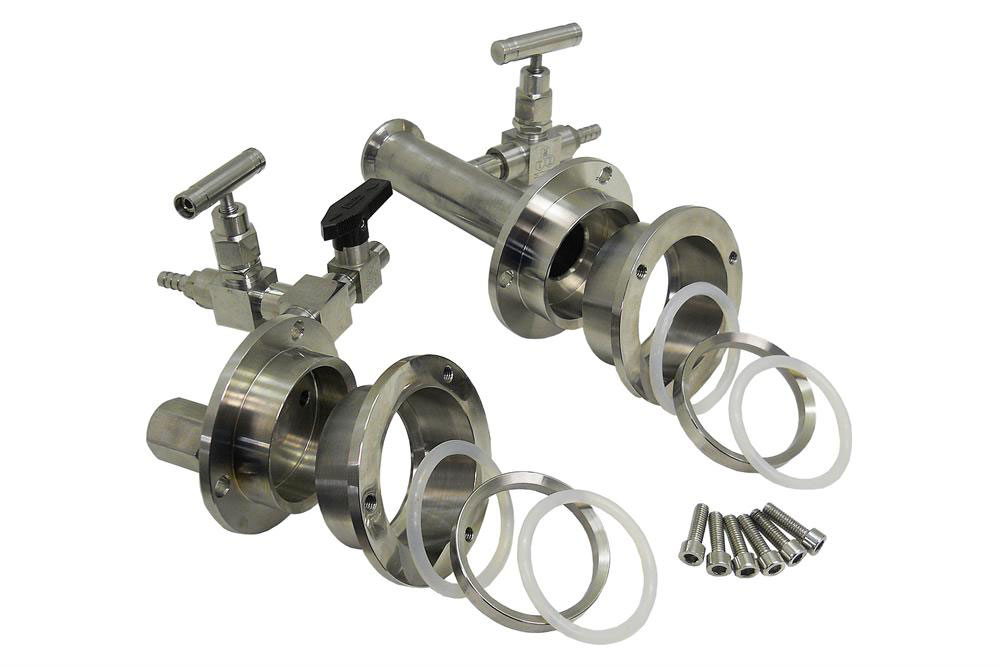

Package included	One Mechanical Pressure Gauge ( Optional: Digital Pressure Gauge), two flanges, two steel sealing rings, four high-temperature silicone O-rings ( 300oC Max.) and six screws
Structure
Features	Seal tube by tightening screws on the flange without any welding and glue. Made of Stainless Steel ( SS304)  with double high-temperature silicon O-rings on each flange. Vacuum level: 10E-2 torr by a mechanical pump 10E-5 torr by a small turbopump and  10-6 torr by hi-speed turbopump
Descriptions	2” flange with various optional  （pls choose from Product Options ) One end of the flange has a barbed needle valve,1/4" feedthrough (the nut is with M15*1.5 thread) for thermocouple inserted and 1/8 NPS valve with installed  Mechanical Pressure Gauge. (if you need  Compact Digital Vacuum Gauge, please choose from product option at extra cost. If you don't need vacuum gauge, please instruct us when you order, we can take it off, but no price deduction )   Another end of the flange has a KF25 port with a barbed needle valve. You may need KFD25 angle valve before connecting the vacuum port to the vacuum pump. Please choose the KF25 angle valve at related product below. Seal tube by tightening screws on the flange without any welding and glue. 1/4" in diameter vacuum sealing assembly will connect with 1/4" rubber hose. Designed for MTI OTF-1200X Desktop Quartz Tube Furnace. Excellent for any type of tubing: ceramic, glass, quartz and steel pipe.
Optionals	Please click here to order digital vacuum gauge for precision vacuum control upto 10-4 torr  For CVD application, please choose anti-corrosive vacuum gauge ( click pic below left 2 ) You can choose various end of fitting as options  ( click here to order separately ) You may click here order a flowmeter to control gas flowing  You may order flange support to avoid tube turning ( pic below right)
Installation Video
Dimensions	Click to enlarge
