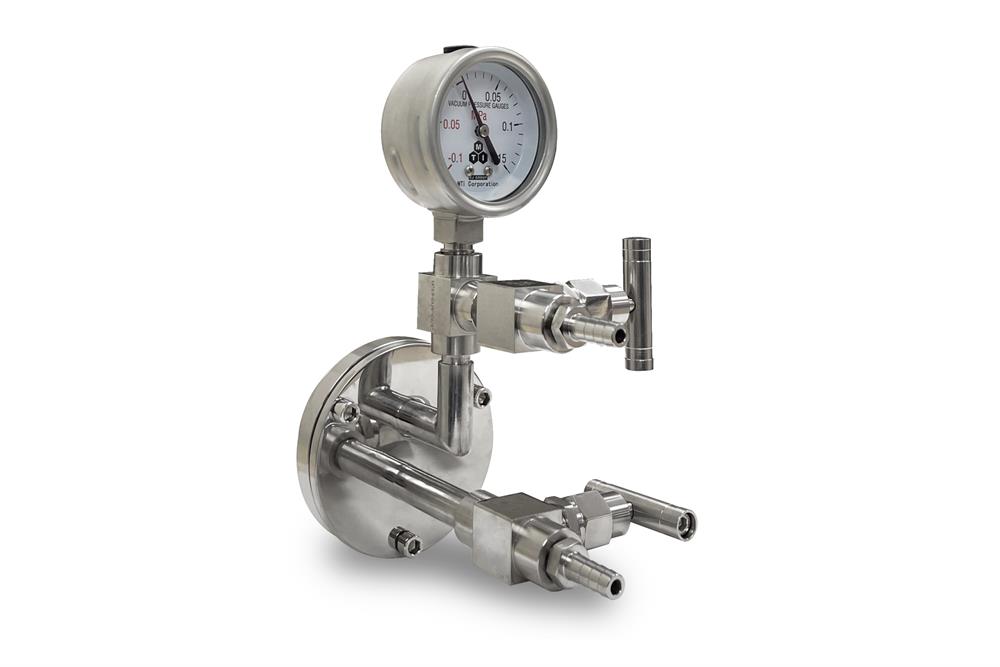

Vacuum Sealing Flange for 2" Processing Tube- FL50L2V

0.0/5 rating (0 votes)

Description

This is the Vacuum Sealing Flange for a 2" vacuum furnace to seal the OD 50-52 mm ( 2")  tube without any welding and gluing.

SPECIFICATIONS

Features
  • Special designed flange for KSL-1100X-S-H
  • Seal tube by tightening screws on the flange without any welding and glue.
  • Made of Stainless Steel (SS304)  with double high-temperature silicon O-rings on each flange.
  • Click the picture below to order a digital vacuum gauge for mechanical gauge replacement.
  •  http://www.mtixtl.com/images/50flbig.jpg" id="mt-1365046832159" class="MagicThumb" style="cursor: url("/graphics/zoomin.cur"), pointer; outline: 0px !important; font: 9pt Tahoma, Geneva, sans-serif; color: rgb(0, 51, 204); text-decoration: none; letter-spacing: 0pt; word-spacing: 0pt;">
Structure
  • Mechanical Pressure Gauge
  • Two Needle valves with barbed fitting for 10mm O.D. tube
  • 1/4" tube fitting on the inside of the flange
Vacuum Level

Warning
  • Must put a refractory tube block in front of the flange (see picture below) to avoid heat radiation melt silicone O-ring. You order a ceramic block in related products.
  • Please do not over-tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
            http://www.mtixtl.com/productimages/flanges/kit_flange.jpg" id="mt-1476823920295" class="MagicThumb" style="cursor: url("/graphics/zoomin.cur"), pointer; outline: 0px !important; font: 9pt Tahoma, Geneva, sans-serif; color: rgb(0, 51, 204); text-decoration: none;">
Installation Video

Application Notes                                                Sealing flanges for 40 - 42 mm O.D tube                          Vacuum pump and high vacuum station
Click here to order a complete set.         Click pic to choose other size flange           Vacuum Pump & High Vacuum Station
